lingxingicDatasheet (PDF)

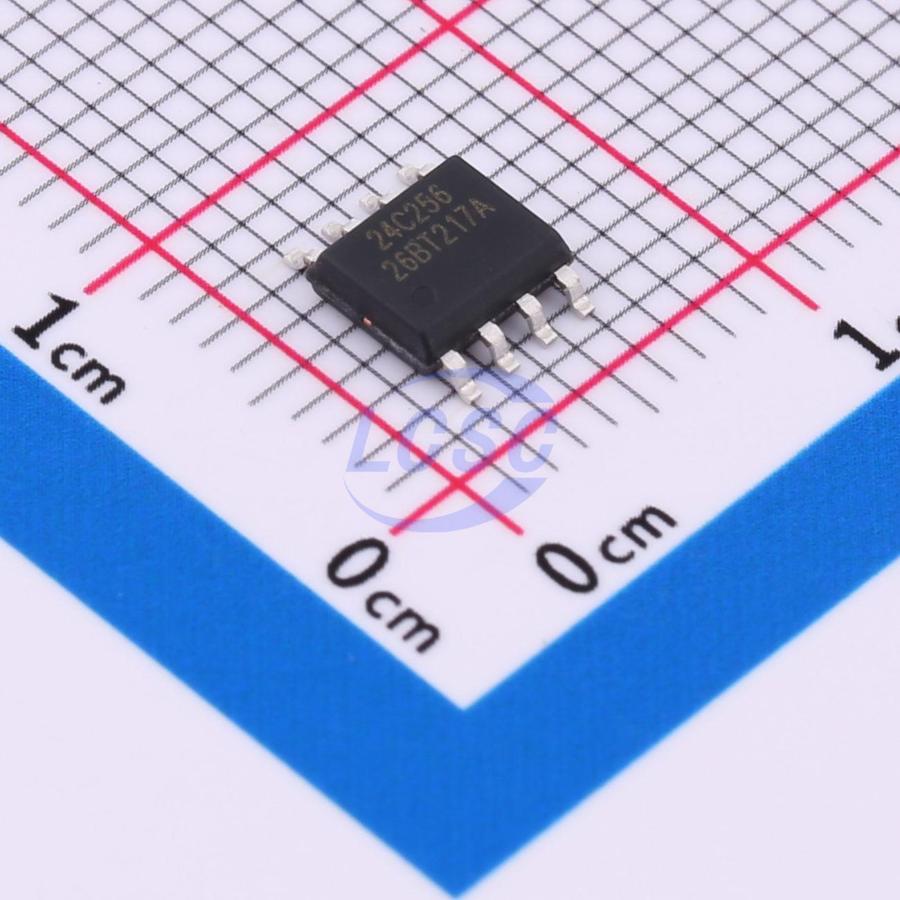

24C256(LX)
256Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
256K Bit Serial EEPROM
- Manufacturer
- lingxingic
- Manufacturer part #
- 24C256(LX)
- Store part #
- C22397202
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C22397202
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.07 | ₹145.35 |
| 50+ | ₹22.53 | ₹1,126.50 |
| 150+ | ₹19.73 | ₹2,959.50 |
| 500+ | ₹16.23 | ₹8,115.00 |
| 2,500+ | ₹15.33 | ₹38,325.00 |
| 4,000+ | ₹14.39 | ₹57,560.00 |
5 × ₹29.07
₹145.35
excl. GST
₹171.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C256(LX)
₹145.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
24C256 is a 256K-bit serial EEPROM organized as 32768×8 bits, internally divided into 512 pages of 64 bytes each. With an I2C interface, it is suited for low-power, low-voltage systems.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V～5.5V
- Memory organization: 32768x8 (256K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression, bidirectional data transfer protocol, 400kHz (1.8V～2.5V) and 1MHz (2.5V～5.5V) clock range, 64-byte page write
- Partial page write supported
- Additional write-lockable page
- Self-timed write cycle (5ms max)
- High reliability: Endurance: 2,000,000 cycles; Data retention: 100 years
- Package options: DIP8, SOP8, TSSOP8
