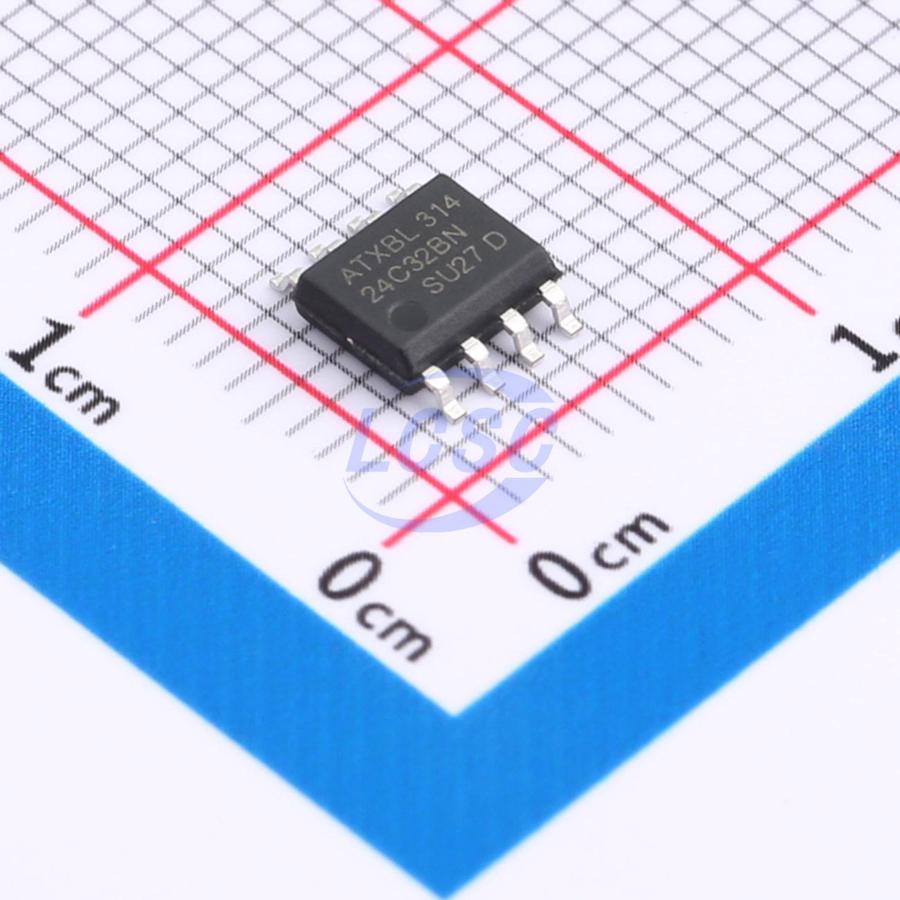

24C32-HXY
32Kbit 1MHz I2C SOP-8 Memory
32K Bit Serial EEPROM, Low Voltage and Low Power
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 24C32-HXY
- Store part #
- C7427348
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C7427348
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.96 | ₹1,194.00 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 2,500+ | ₹6.19 | ₹15,475.00 |
| 4,000+ | ₹5.82 | ₹23,280.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C32-HXY
₹58.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
The 24C32 series is a 32,768-bit serial EEPROM organized as 4,096 words of 8 bits (one byte) each. Manufactured using a proprietary advanced CMOS process, these devices are suited for low-power and low-voltage applications. They are available in standard 8-pin DIP, 8-pin SOP (SOIC-8), 8-pin MSOP, 8-pin TSSOP, 5-pin SOT-23, and 5-pin TSOT-23 packages. A standard 2-wire serial interface is used to address all read and write operations. The wide VCC operating range of 1.8V to 5.5V makes these devices suitable for a broad range of applications.
Key features
- Low-voltage, low-power operation: 24C32: VCC = 1.8V~5.5V
- 32-byte page write mode
- Partial page write supported
- Internal organization: 4096×8 (32K)
- Standard 2-wire bidirectional serial interface
- Schmitt trigger inputs with noise suppression filtering
- Self-timed write cycle (5ms max)
- 1000 kHz (2.5V–5V) and 400 kHz (1.8V) compatible
- Auto-erase before write operation
- Write protect pin for hardware data protection
- High reliability: 1,000,000 typical erase/write cycles
- 100-year data retention
- Industrial temperature range (-40°C~85°C)
- Standard 8-pin DIP/SOP/MSOP/TSSOP and 5-pin SOT-23/TSOT-23 lead-free packages
