lingxingicDatasheet (PDF)

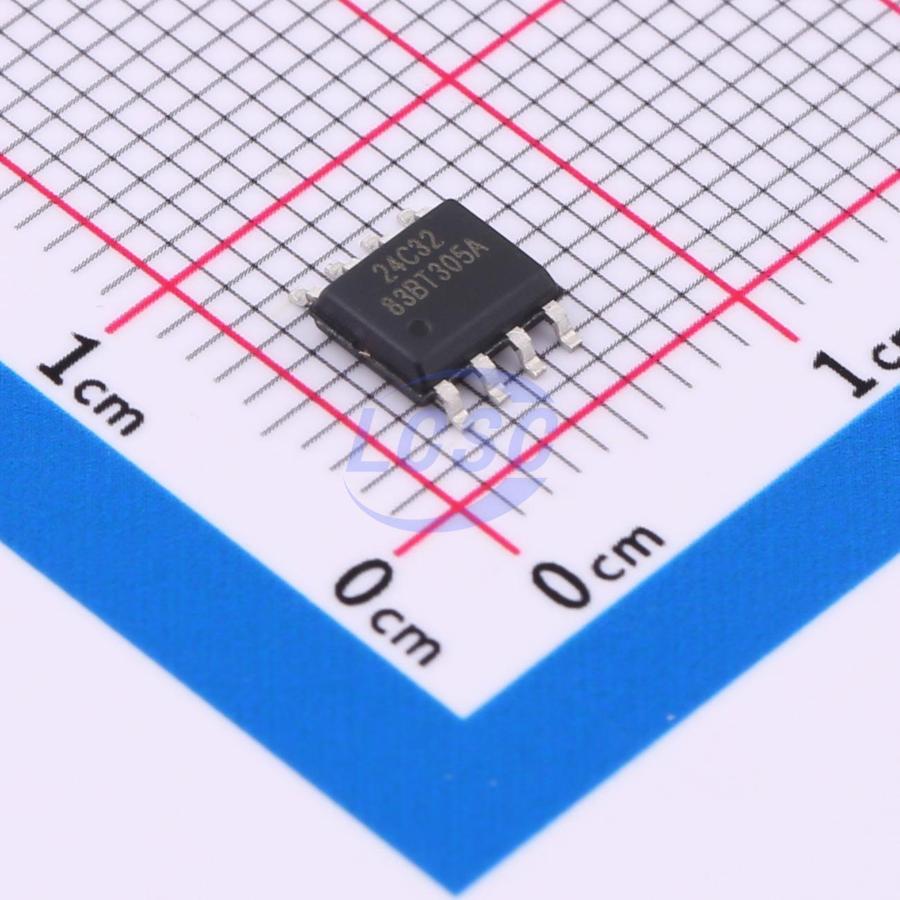

24C32(LX)
32Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
32K Bits Serial Electrically Erasable Programmable Read-Only Memory
- Manufacturer
- lingxingic
- Manufacturer part #
- 24C32(LX)
- Store part #
- C22397203
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C22397203
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.41 | ₹62.05 |
| 50+ | ₹9.86 | ₹493.00 |
| 150+ | ₹8.59 | ₹1,288.50 |
| 500+ | ₹7.62 | ₹3,810.00 |
| 2,500+ | ₹6.64 | ₹16,600.00 |
| 4,000+ | ₹6.26 | ₹25,040.00 |
5 × ₹12.41
₹62.05
excl. GST
₹73.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C32(LX)
₹62.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
24C32 is a 32K-bit serial EEPROM organized as 4096×8 bits, internally divided into 128 pages of 32 bytes each. Random word addressing requires a 12-bit data word address. With an I2C interface, it is suitable for low-power, low-voltage systems.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V ~ 5.5V
- Memory organization: 4096x8 (32K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V ~ 2.5V) and 1MHz (2.5V - 5.5V)
- 32-byte page write
- Partial page write supported
- Self-timed write cycle (5ms max)
- High reliability: endurance 1,000,000 cycles; data retention 100 years
- Automotive grade, extended temperature range
- Package: DIP8, SOP8, TSSOP8
