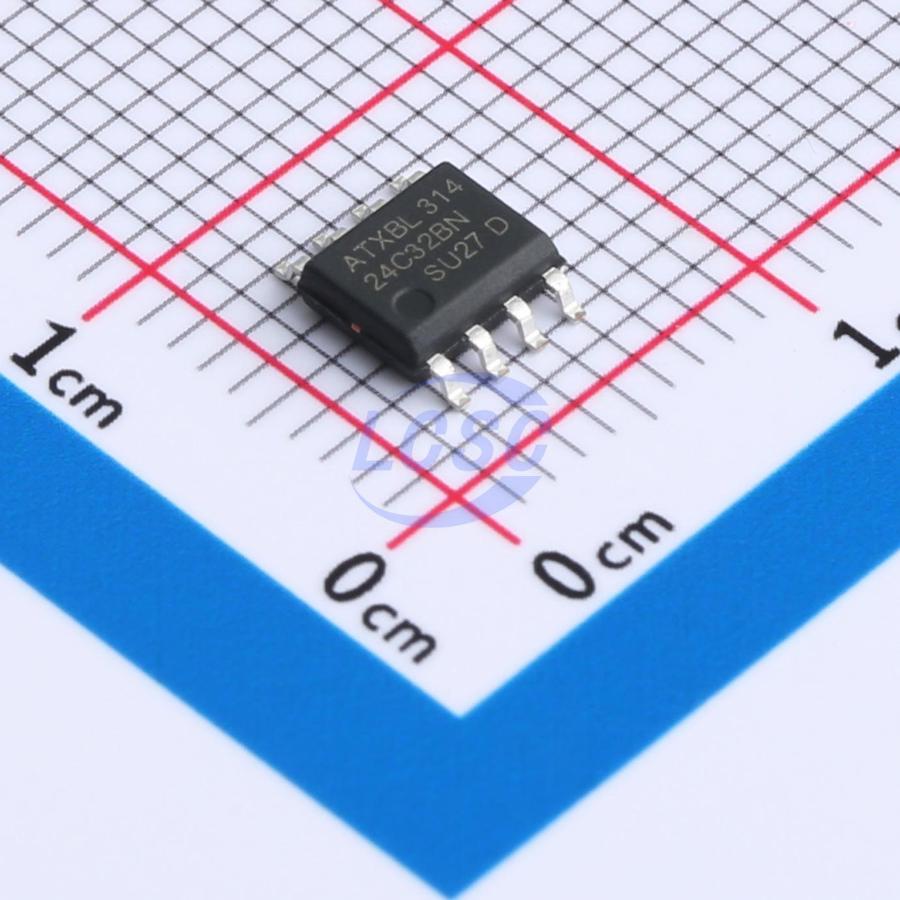

24C32BN(XBLW)
32Kbit 1MHz I2C SOP-8 Memory RoHS
32K Bits Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,155 in stock
#C18723546
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.07 | ₹50.35 |
| 50+ | ₹7.89 | ₹394.50 |
| 150+ | ₹6.80 | ₹1,020.00 |
| 500+ | ₹5.98 | ₹2,990.00 |
| 2,500+ | ₹5.33 | ₹13,325.00 |
| 4,000+ | ₹5.00 | ₹20,000.00 |
5 × ₹10.07
₹50.35
excl. GST
₹59.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C32BN(XBLW)
₹50.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.166 g
Overview
The 24C32 series are 32,768 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 4096 words of 8 bits (one byte) each. The devices are fabricated with vproprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8 - lead DIP, 8 - lead SOP, 8 - lead MSOP, 8 - lead TSSOP, 8 - lead DFN, 5 - lead SOT23 and 6 - lead DFN packages. A standard 2 - wire serial interface is used to address all read and write functions. Our extended Vcc range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C32: ΔVCC = 1.8V to 5.5V
- 32 bytes page write mode.
- Partial page write operation allowed.
- Internally organized: 4,096 x 8 (32K).
- Standard 2 - wire bi - directional serial interface.
- Schmitt trigger, filtered inputs for noise protection.
- Self - timed Write Cycle (5ms maximum).
- 1000 kHz (2.5V - 5V), 400 kHz (1.8V) Compatibility.
- Automatic erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: typically 1,000,000 cycles endurance.
- 100 years data retention.
- Industrial temperature range (-40℃ to 85℃)
- Standard 8 - pin DIP/SOP/MSOP/TSSOP/DFN, 6 - pin DFN and 5 - pin SOT - 23 Pb - free packages.
