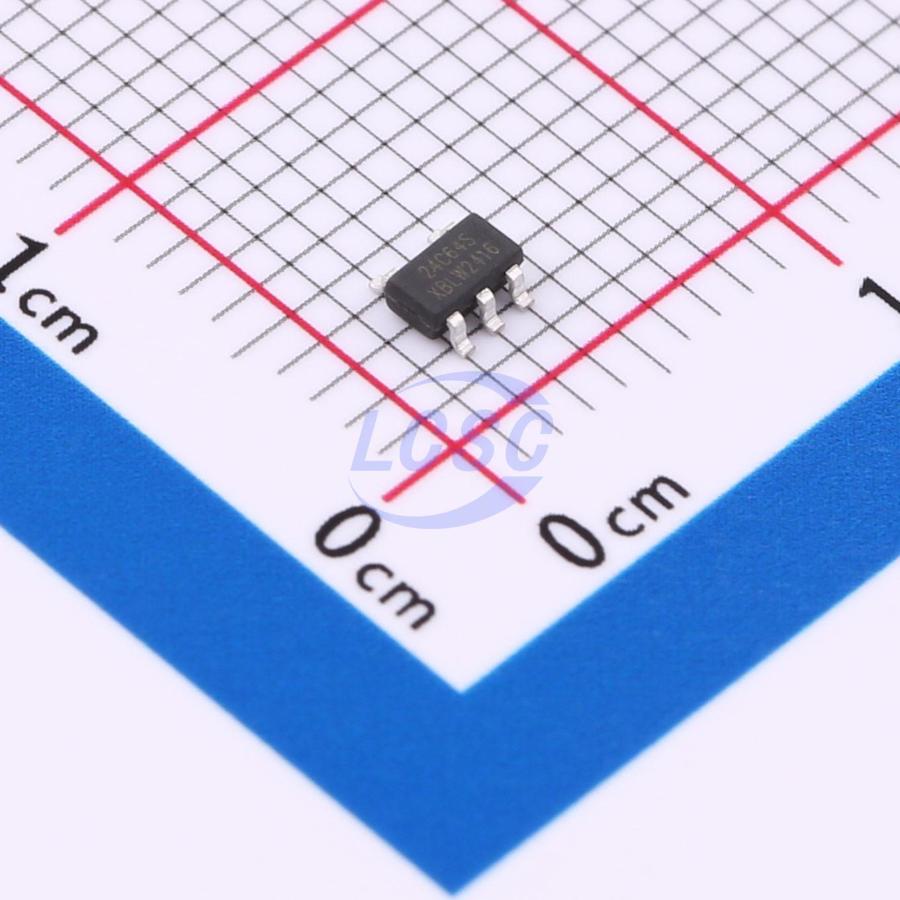

24C64S(XBLW)
64Kbit 1MHz I2C SOT-23-5 Memory RoHS
64K-bit Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,960 in stock
#C41408505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.15 | ₹507.50 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹7.69 | ₹3,845.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.43 | ₹38,580.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24C64S(XBLW)
₹64.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 1.2us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The 24C64 series are 65,536 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 8192 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 5-lead SOT23 and 6-lead DFN packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended Vcc range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C64: V cc = 1.8V to 5.5V
- 32 bytes page write mode. Partial page write operation allowed. Internally organized: 8,192 x 8 (64K)
- Standard 2-wire bi-directional serial interface. Schmitt trigger, filtered inputs for noise protection. Self-timed Write Cycle (5ms maximum). 1000 kHz (2.5V - 5.5V), 400 kHz (1.8V) Compatibility. Automatic erase before write operation
- Write protect pin for hardware data protection. High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Industrial temperature range (-40 ℃ to 85 ℃)
- Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN, 6-pin DFN and 5-pin SOT - 23 Pb-free packages
