MICROCHIP

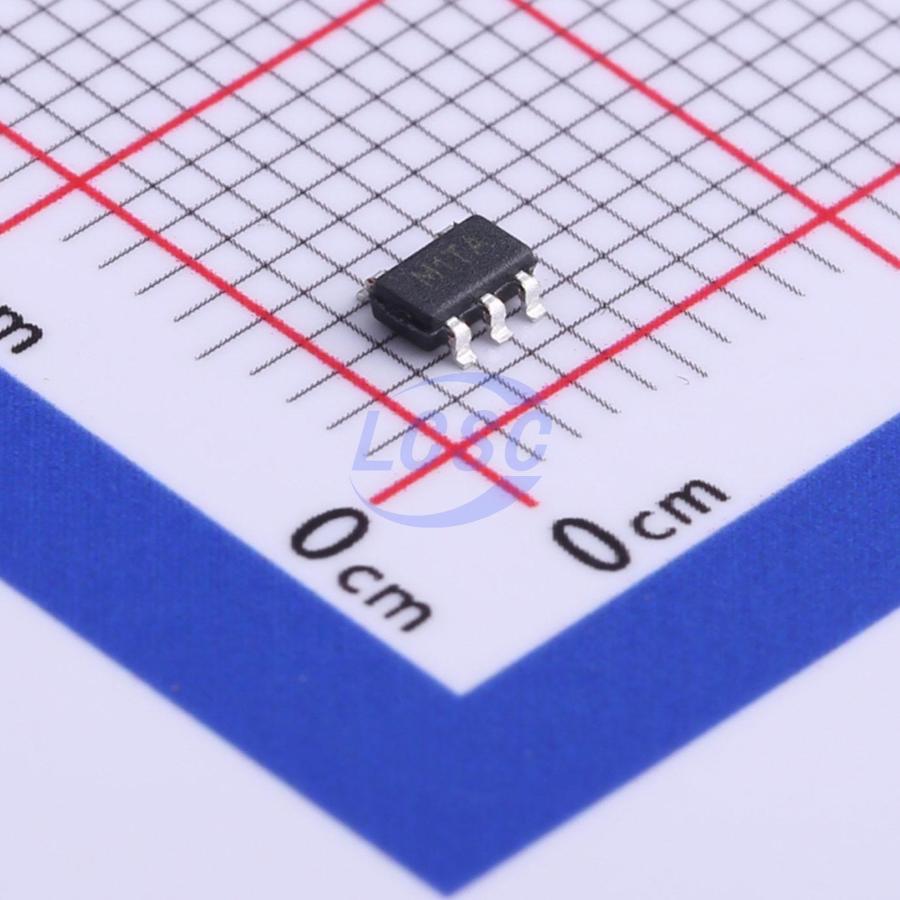

24LC01BT-I/OT
1Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
1K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,710 in stock
#C511269
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.66 | ₹223.30 |
| 50+ | ₹35.59 | ₹1,779.50 |
| 150+ | ₹31.71 | ₹4,756.50 |
| 500+ | ₹26.86 | ₹13,430.00 |
| 3,000+ | ₹24.70 | ₹74,100.00 |
| 6,000+ | ₹23.40 | ₹1,40,400.00 |
5 × ₹44.66
₹223.30
excl. GST
₹263.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC01BT-I/OT
₹223.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The 24XXX01 is a 1 Kbit Electrically Erasable PROM. The device is organized as one block of 128x8-bit memory with a 2-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX01 also has a page write capability for up to 8 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA01 and 24FC01 Devices, 2.5V for 24LC01B Devices
- Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 μA, maximum (I-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: - Industrial (I): -40℃ to +85℃ - Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA01T-I/OT#C122877MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 9,175 | ₹51.28 · 9,175 in stock | View |
 | 24AA01HT-I/OT#C2062275MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 15 | ₹53.33 · 15 in stock | View |
 | 24LC01BT/OT#C2062266MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 1 | ₹104.12 · 1 in stock | View |
| 24LC01BHT-I/OT#C616229MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | On request | Price on request | Quote | |
| 24LC01BHT-E/OT#C2062719MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | On request | Price on request | Quote | |
