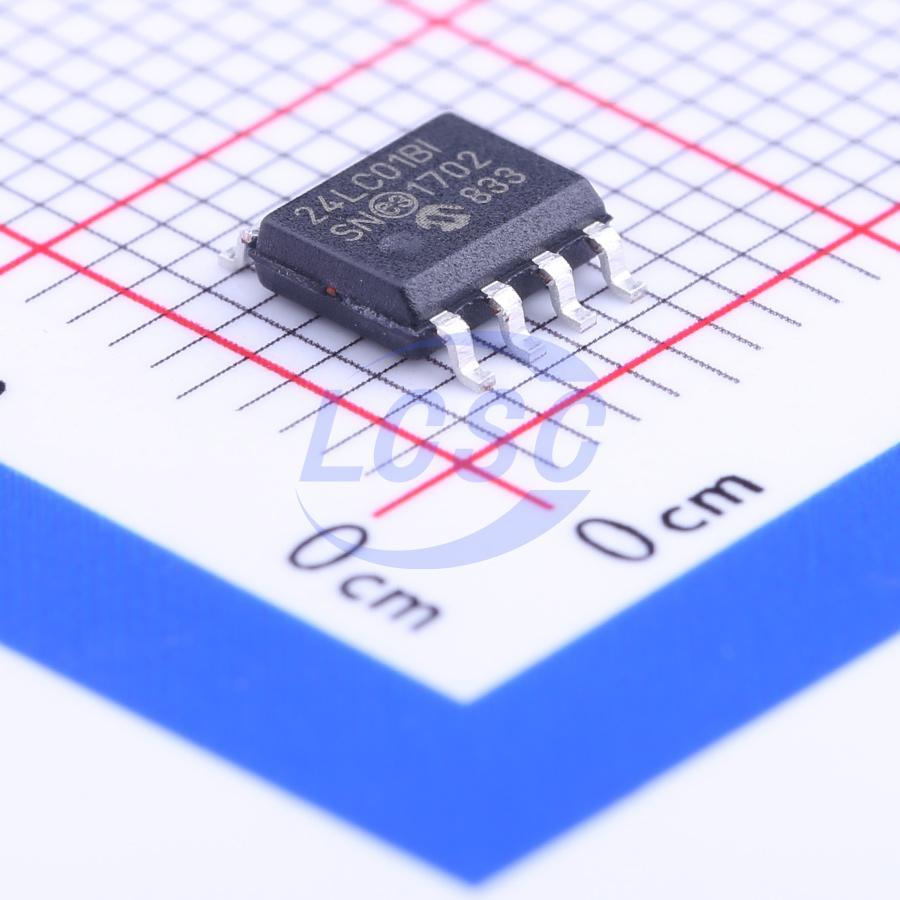

24LC01BT-I/SN
1Kbit 400kHz I2C SOIC-8 Memory RoHS
1K 2-wire serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,847 in stock
#C5452
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.92 | ₹66.92 |
| 10+ | ₹53.24 | ₹532.40 |
| 30+ | ₹47.36 | ₹1,420.80 |
| 100+ | ₹39.98 | ₹3,998.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹66.92
₹66.92
excl. GST
₹78.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC01BT-I/SN
₹66.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The 24AA01/24LC01B (24XX01*) is a 1Kbit Electrically Erasable PROM. The device is organized as one block of 128x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24Xx01 also has a page write capability for up to 8 bytes of data. The 24XX01 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN and MSOP packages, and is also available in the 5-lead SOT-23 and SC-70 packages.
Key features
- Single Supply with Operation down to 1.7V for 24AAXX Devices, 2.5V for 24LCXX Devices
- Low-Power CMOS Technology:
- Read current 1 mA, max.
- Standby current 1 μA, max. (l-temp)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger inputs for Noise Suppression
- Output Slope Control to eliminate Ground Bounce 100 kHz and 400 kHz Compatibility
- Page Write Time 3 ms, typical
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programmable Available
- Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP, 5-lead SOT-23 and SC-70
- Pb-free and RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC01B-I/SN#C511265MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 34 | ₹113.16 · 34 in stock | View |
 | 24AA01-I/SN#C148037MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹51.49 · 4 in stock | View |
 | 24AA01T-I/SN#C2061395MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3,250 | ₹39.58 · 3,250 in stock | View |
 | 24LC014T-I/SN#C615667MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 9 | ₹94.10 · 9 in stock | View |
 | 24AA014-I/SN#C615101MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2 | ₹101.63 · 2 in stock | View |
