MICROCHIP

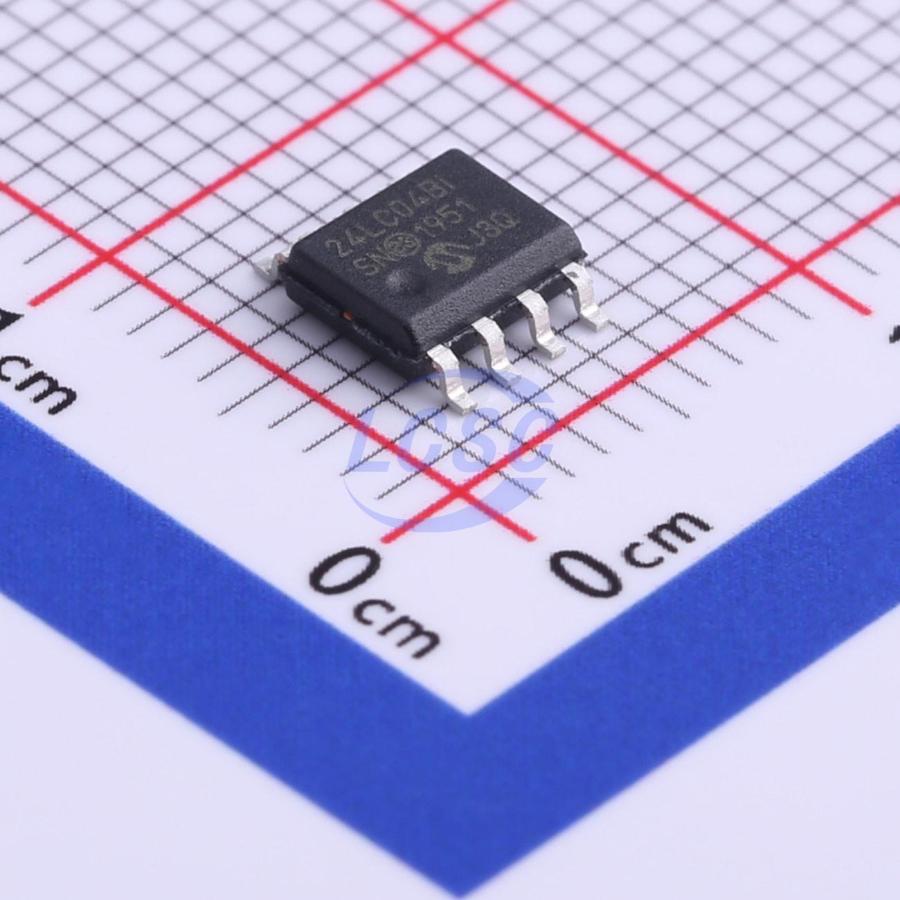

24LC04BT-I/SN
4Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
4K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,490 in stock
#C511263
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.76 | ₹263.80 |
| 50+ | ₹42.04 | ₹2,102.00 |
| 150+ | ₹37.45 | ₹5,617.50 |
| 500+ | ₹31.73 | ₹15,865.00 |
| 3,300+ | ₹29.17 | ₹96,261.00 |
| 6,600+ | ₹27.65 | ₹1,82,490.00 |
5 × ₹52.76
₹263.80
excl. GST
₹311.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC04BT-I/SN
₹263.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.109 g
Overview
The 24xxx04 is a 4-Kbit Electrically Erasable PROM. The device is organized as two blocks of 256x8-bit memory with a 2-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24xxx04 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA04 and 24FC04 Devices, 2.5V for 24LC04B Devices
- Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1 μA, maximum (I-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC04B-I/SN#C1348732MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 14 | ₹73.89 · 14 in stock | View |
 | 24LC04BH-I/SN#C615185MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 7 | ₹133.89 · 7 in stock | View |
 | 24LC04B-I/SNG#C615187MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 7 | ₹97.89 · 7 in stock | View |
| 24AA04T-I/SN#C2061464MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 177 | ₹48.02 · 177 in stock | View | |
 | 24AA04H-I/SN#C615119MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 45 | ₹98.60 · 45 in stock | View |
