MICROCHIP

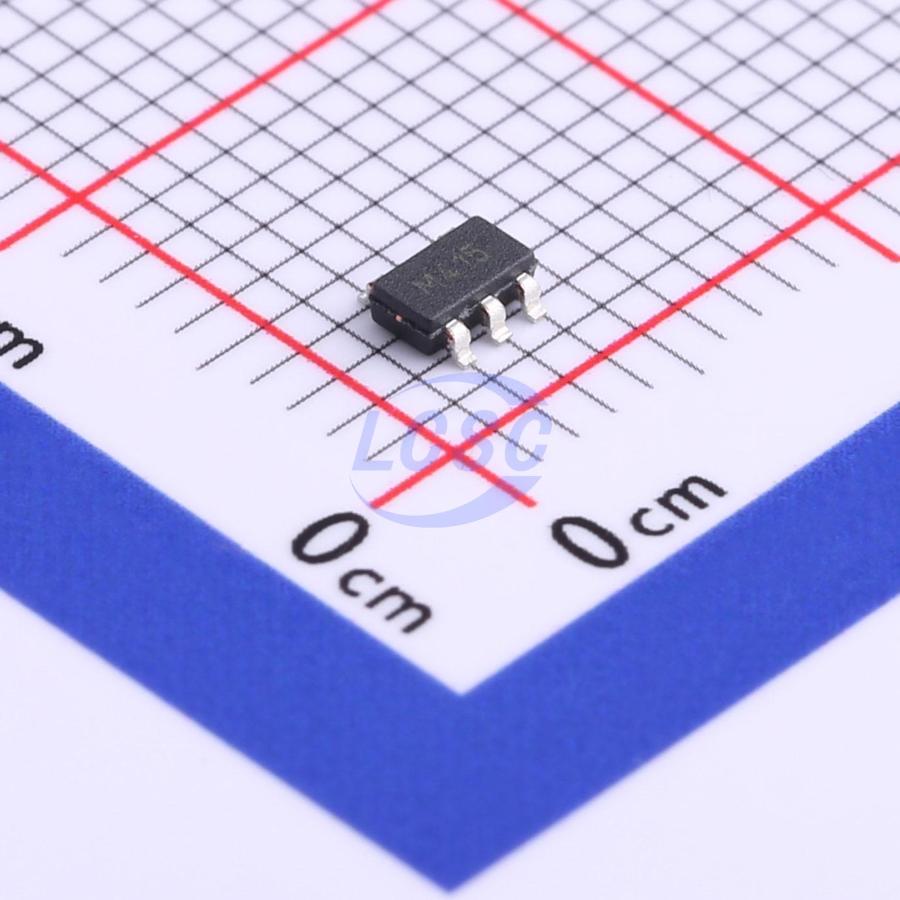

24LC08BT-I/OT
8Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
8K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,740 in stock
#C89050
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.52 | ₹272.60 |
| 50+ | ₹44.15 | ₹2,207.50 |
| 150+ | ₹39.70 | ₹5,955.00 |
| 500+ | ₹31.75 | ₹15,875.00 |
| 3,000+ | ₹29.29 | ₹87,870.00 |
| 6,000+ | ₹27.81 | ₹1,66,860.00 |
5 × ₹54.52
₹272.60
excl. GST
₹321.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC08BT-I/OT
₹272.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The 24xxx08 is an 8-Kbit Electrically Erasable PROM (EEPROM). The device is organized as four blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24xxx08 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices
- Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 μA maximum (l-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: - Industrial (l): -40℃ to +85℃ - Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC08BT-E/OT#C2061755MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,951 | ₹90.84 · 2,951 in stock | View |
| 24AA08T-I/OT#C144178MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 1,902 | ₹79.54 · 1,902 in stock | View | |
 | 24LC08BHT-I/OT#C2062727MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | On request | Price on request | Quote |
 | HX24LC08BDBVRG#C2987267HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 1,460 | ₹12.67 · 1,460 in stock | View |
 | CAT24C08TDI-GT3#C5207910onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 155 | ₹48.63 · 155 in stock | View |
