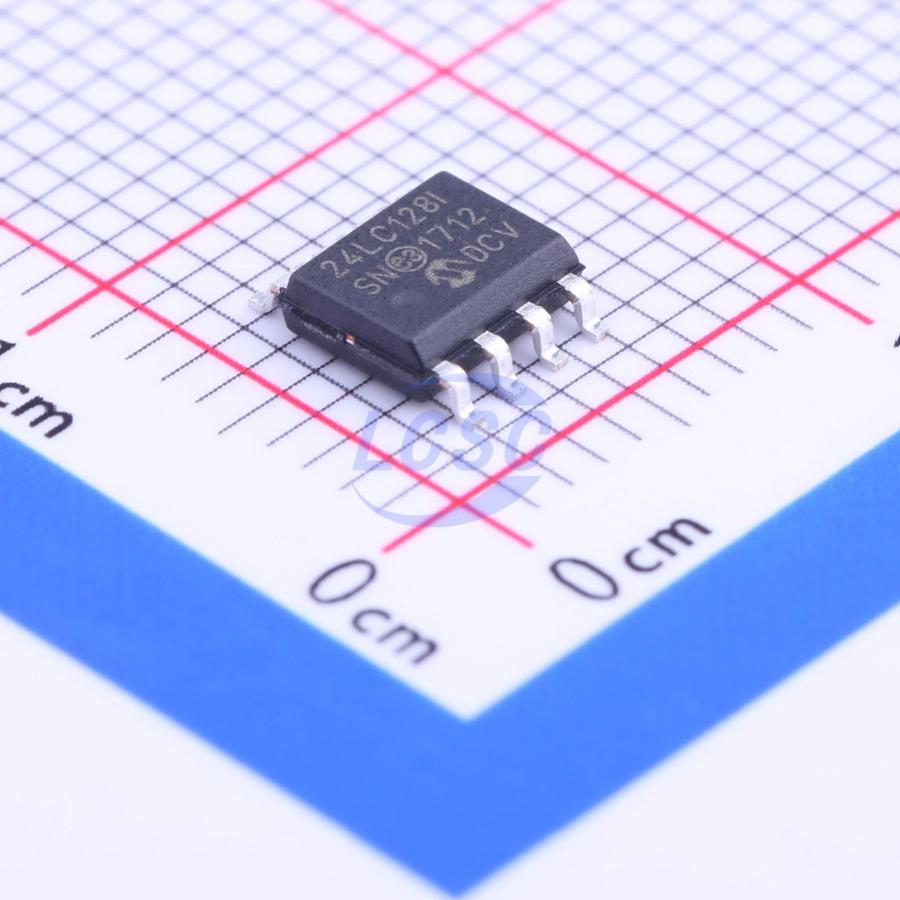

24LC128T-I/SN
128Kbit 400kHz I2C SOIC-8 Memory RoHS
128K I²C CMOS Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,145 in stock
#C99368
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.44 | ₹80.44 |
| 10+ | ₹64.40 | ₹644.00 |
| 30+ | ₹57.68 | ₹1,730.40 |
| 100+ | ₹49.00 | ₹4,900.00 |
| 500+ | ₹43.59 | ₹21,795.00 |
| 1,000+ | ₹41.20 | ₹41,200.00 |
1 × ₹80.44
₹80.44
excl. GST
₹94.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC128T-I/SN
₹80.44 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The 24AA128/24LC128/ 24FC128 (24xx128*) is a 16K x 8 (128 Kbit) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 128K boundary. Functional address lines allow up to eight devices on the same bus, for up to 1 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC (3.90 mm and 5.28 mm), TSSOP, MSOP, DFN, TDFN and Chip Scale packages.
Key features
- Single Supply with Operation down to 1.7V for 24AA128/24FC128 devices, 2.5V for 24LC128 Devices
- Low-Power CMOS Technology:
- Write current 3 mA, typical
- Standby current 100 nA, typical
- 2-Wire Serial Interface, I²C™ Compatible
- Cascadable up to Eight Devices
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- 1 MHz Clock for FC Versions
- Page Write Time 5 ms, typical
- Self-Timed Erase/Write Cycle
- 64-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 years
- Factory Programming Available
- Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP, and Chip Scale Packages
- Pb-Free and RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC128-I/SN#C92359MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,781 | ₹97.23 · 1,781 in stock | View |
 | 24AA128T-I/SN-TUDI#C41410997Tudi · SOP-8 | Tudi | SOP-8 | 2,342 | ₹73.94 · 2,342 in stock | View |
 | 24LC128-E/SN#C615196MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 52 | ₹263.91 · 52 in stock | View |
 | 24LC128T-E/SN#C615700MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 38 | ₹275.73 · 38 in stock | View |
 | 24AA128-I/SN#C511330MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 176 | ₹220.78 · 176 in stock | View |
