MICROCHIP

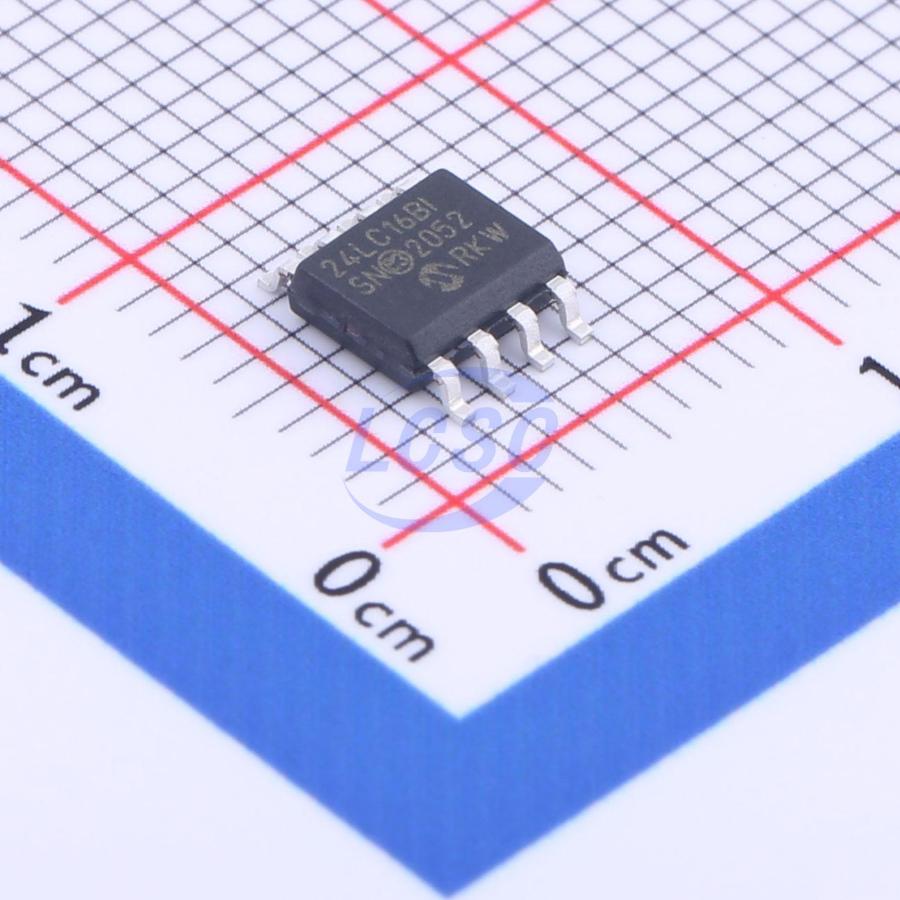

24LC16B-I/SN
16Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
16K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C1349383
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.12 | ₹265.60 |
| 50+ | ₹42.23 | ₹2,111.50 |
| 150+ | ₹37.44 | ₹5,616.00 |
| 500+ | ₹31.57 | ₹15,785.00 |
| 2,500+ | ₹28.96 | ₹72,400.00 |
| 5,000+ | ₹27.43 | ₹1,37,150.00 |
5 × ₹53.12
₹265.60
excl. GST
₹313.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
24LC16B-I/SN
₹265.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.271 g
Overview
The 24XX16 is a 16-Kbit Electrically Erasable PROM (EEPROM). The device is organized as eight blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1μA and 1 mA, respectively. The 24XX16 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA16 and 24FC16 Devices, 2.5V for 24LC16B Devices
- Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1μA, maximum (I-Temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC16BT-I/SN#C5456MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10,685 | ₹44.27 · 10,685 in stock | View |
 | 24LC16BH-I/SN#C1351703MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹131.04 · 97 in stock | View |
 | 24LC16B-I/SNG#C615202MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 25 | ₹207.82 · 25 in stock | View |
 | 24AA16H-I/SN#C615128MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 50 | ₹88.91 · 50 in stock | View |
 | 24LC16BT-E/SN#C2061158MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 144 | ₹147.55 · 144 in stock | View |
