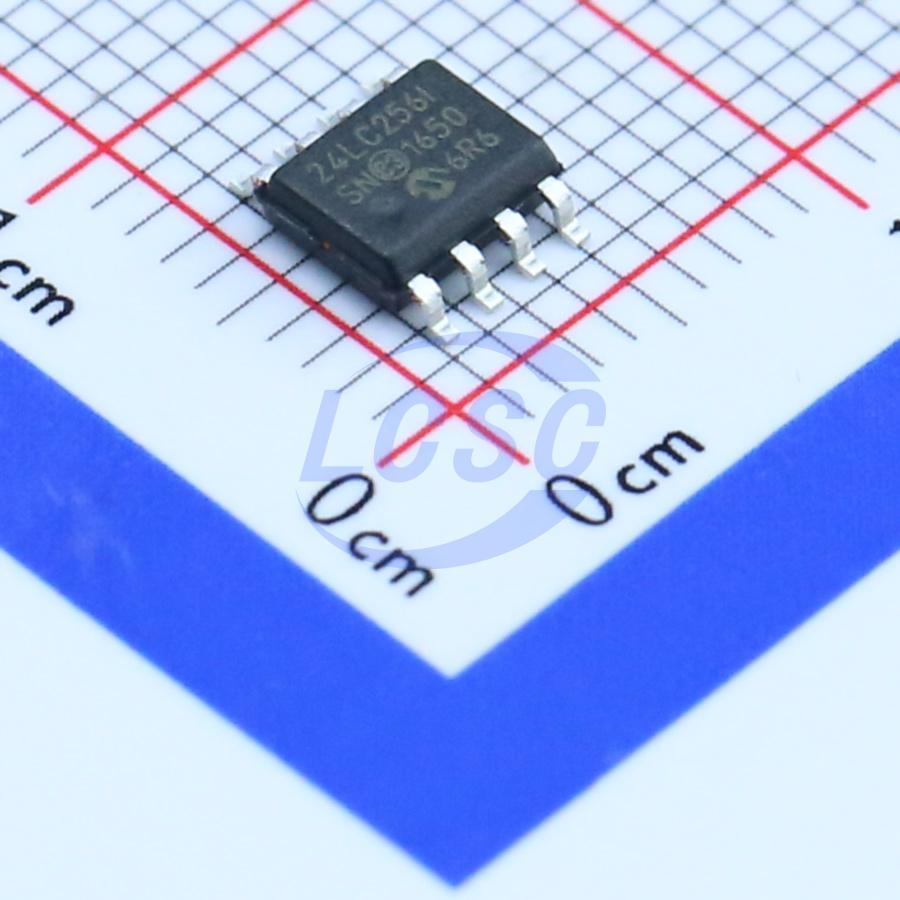

24LC256T-I/SN
256Kbit 400kHz I2C SOIC-8 Memory RoHS
256K I²C CMOS Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,685 in stock
#C5458
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.29 | ₹58.29 |
| 10+ | ₹45.66 | ₹456.60 |
| 30+ | ₹40.42 | ₹1,212.60 |
| 100+ | ₹33.57 | ₹3,357.00 |
| 500+ | ₹29.96 | ₹14,980.00 |
| 1,000+ | ₹28.16 | ₹28,160.00 |
1 × ₹58.29
₹58.29
excl. GST
₹68.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC256T-I/SN
₹58.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 256Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
The 24AA256/24LC256/ 24FC256 (24xx256*) is a 32K x 8 (256 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.8V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP and DFN packages.
Key features
- Low-power CMOS technology:
- Maximum write current 3 mA at 5.5V
- Maximum read current 400 μA at 5.5V
- Standby current 100 nA, typical at 5.5V
- 2-wire serial interface bus, I²C compatible
- Cascadable for up to eight devices
- Self-timed erase/write cycle
- 64-byte Page Write mode available
- 5 ms max. write cycle time
- Hardware write-protect for entire array
- Output slope control to eliminate ground bounce
- Schmitt Trigger inputs for noise suppression
- 1,000,000 erase/write cycles
- Electrostatic discharge protection >4000V
- Data retention >200 years
- 8-pin PDIP, SOIC, TSSOP, MSOP and DFN packages, 14-lead TSSOP package
- Pb-free finishes available
- Temperature ranges:
- Industrial (I): -40℃ to +85℃
- Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC256-I/SN#C411625MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,027 | ₹84.48 · 1,027 in stock | View |
 | 24LC256-E/SN#C615210MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 510 | ₹135.92 · 510 in stock | View |
 | 24LC256T-E/SN#C615710MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 73 | ₹180.68 · 73 in stock | View |
 | 24AA256-I/SN#C152169MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 67 | ₹100.28 · 67 in stock | View |
 | 24AA256T-I/SN#C152172MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,665 | ₹104.68 · 1,665 in stock | View |
