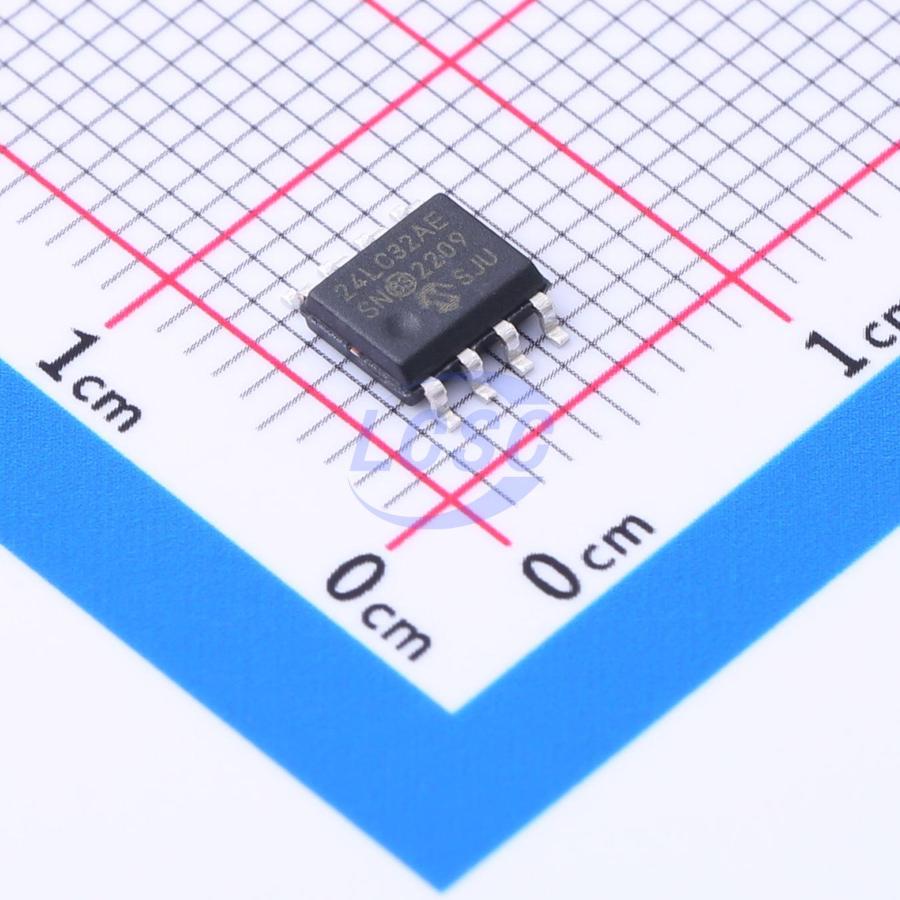

24LC32AT-E/SN
32Kbit 400kHz I2C SOIC-8 Memory RoHS
32-Kbit I²C Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,703 in stock
#C615714
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.36 | ₹83.36 |
| 10+ | ₹66.82 | ₹668.20 |
| 30+ | ₹58.77 | ₹1,763.10 |
| 100+ | ₹50.50 | ₹5,050.00 |
| 500+ | ₹43.32 | ₹21,660.00 |
| 1,000+ | ₹40.92 | ₹40,920.00 |
1 × ₹83.36
₹83.36
excl. GST
₹98.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC32AT-E/SN
₹83.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.93 g
Overview
The 24XX32A is a 32-Kbit Electrically Erasable PROM (EEPROM). The device is organized as a single block of 4Kx8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX32A also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 256 Kbits address space.
Key features
- Single Supply with Operation down to 1.7V for 24AA32A Devices, 2.5V for 24LC32A Devices
- Low-Power CMOS Technology: Active current 1 mA, typical; Standby current 1 μA, typical
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 32-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection >4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention >200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: Industrial (I): -40℃ to +85℃; Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC32A-E/SN#C615212MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 51 | ₹153.28 · 51 in stock | View |
 | 24LC32AF-E/SN#C615213MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹119.28 · 4 in stock | View |
 | 24LC32AFT-I/SN#C2065519MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 20 | ₹132.75 · 20 in stock | View |
 | 24LC32A-I/SN#C511262MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 821 | ₹90.36 · 821 in stock | View |
 | 24LC32AT-I/SN#C615715MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3,935 | ₹63.42 · 3,935 in stock | View |
