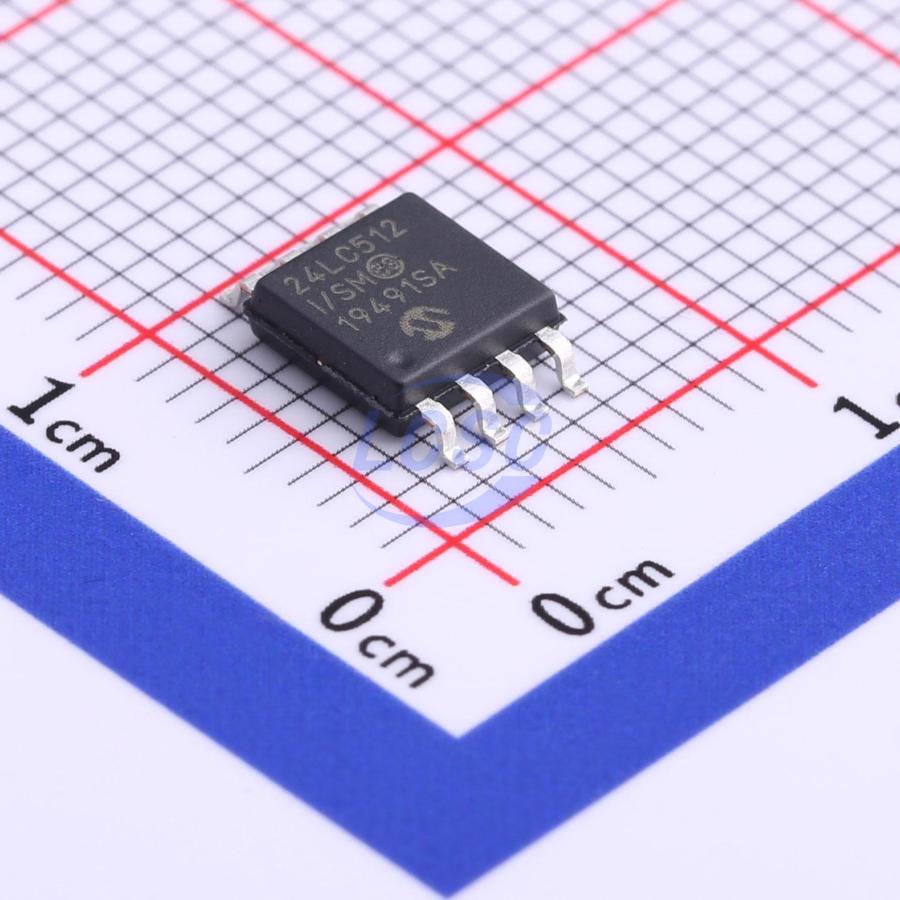

24LC512T-I/SM
512Kbit 400kHz I2C SOIC-8-208mil Memory RoHS
512K I²C Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,945 in stock
#C18091
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.72 | ₹134.72 |
| 10+ | ₹109.08 | ₹1,090.80 |
| 30+ | ₹96.05 | ₹2,881.50 |
| 100+ | ₹83.44 | ₹8,344.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.71 | ₹71,710.00 |
1 × ₹134.72
₹134.72
excl. GST
₹158.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,100 per reel
24LC512T-I/SM
₹134.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 512Kbit
- Voltage - Supply
- 2.5V~5.5V;5mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,100 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.411 g
Overview
The 24AA512/24LC512/ 24FC512 (24XXX512*) is a 64Kx8 (512 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications and data acquisition. This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIJ, SOIC, TSSOP, DFN, and 14-lead TSSOP packages. The 24AA512 is also available in the 8-lead Chip Scale package.
Key features
- Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices
- Low-Power CMOS Technology: - Active current 400uA, typical - Standby current 100 nA, typical
- 2-Wire Serial Interface, I²C™ Compatible
- Cascadable for up to Eight Devices
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce 100kHz and 400kHz Clock Compatibility
- Page Write Time 5 ms max.
- Self-Timed Erase/Write Cycle
- 128-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection >4000V
- More than 1 Million Erase/Write Cycles
- Data Retention >200 years
- Packages Include 8-lead PDIP, SOIJ, SOIC, TSSOP, DFN, Chip Scale and 14-lead TSSOP
- Pb-Free and RoHS Compliant
- Temperature Ranges: - Industrial (I): -40℃ to +85℃ - Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC512-I/SM#C43586MICROCHIP · SOIJ-8-208mil | MICROCHIP | SOIJ-8-208mil | 879 | ₹134.64 · 879 in stock | View |
 | 24AA512T-I/SM#C616101MICROCHIP · SOIJ-8-5.28mm | MICROCHIP | SOIJ-8-5.28mm | 10 | ₹405.09 · 10 in stock | View |
 | 24LC512T-E/SM#C2062146MICROCHIP · SOIJ-8-5.28mm | MICROCHIP | SOIJ-8-5.28mm | 3 | ₹510.68 · 3 in stock | View |
 | 24LC515T-I/SM#C616117MICROCHIP · SOIC-8-208mil | MICROCHIP | SOIC-8-208mil | 650 | ₹458.06 · 650 in stock | View |
 | 24LC512-E/SM#C1348987MICROCHIP · SOIJ-8-5.28mm | MICROCHIP | SOIJ-8-5.28mm | On request | Price on request | Quote |
