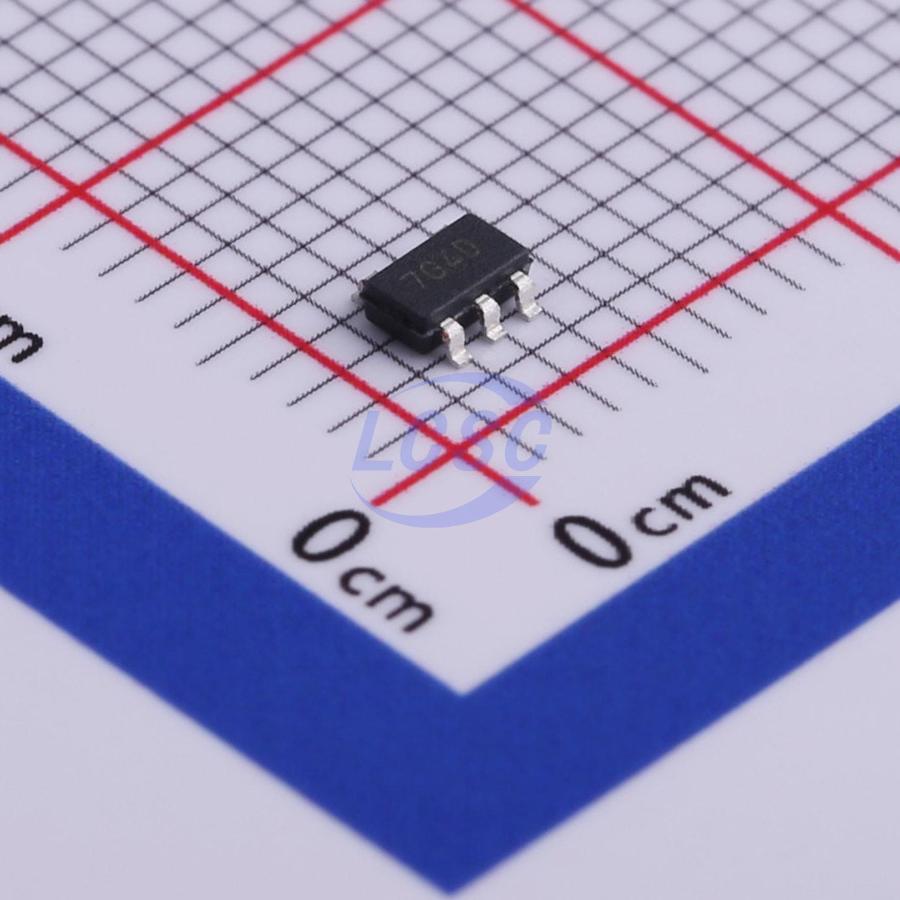

24LC64T-I/OT
64Kbit 400kHz I2C SOT-23-5 Memory
64K I²C Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,349 in stock
#C511267
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.86 | ₹85.86 |
| 10+ | ₹69.81 | ₹698.10 |
| 30+ | ₹61.80 | ₹1,854.00 |
| 100+ | ₹53.99 | ₹5,399.00 |
| 500+ | ₹49.23 | ₹24,615.00 |
| 1,000+ | ₹46.62 | ₹46,620.00 |
1 × ₹85.86
₹85.86
excl. GST
₹101.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC64T-I/OT
₹85.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The 24AA64/24LC64/ 24FC64 (24)xx64 is a 64 Kbit Electrically Erasable PROM. The device is organized as a single block of 8Kx8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.7V, with standby and active currents of only 1μA and 3mA respectively. It has been developed for advanced, low-power applications such as personal communications or data acquisition. The 24Xx64 also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512Kbits address space. The 24XX64 is available in the standard 8-pin PDIP, surface mount SOIC, SOIJ, TSSOP, DFN, TDFN and MSOP packages. The 24XX64 is also available in the 5-lead SOT-23, and Chip Scale packages.
Key features
- Single-Supply with Operation down to 1.7V for 24AA64/24FC64 Devices, 2.5V for 24LC64 Devices
- Low-Power CMOS Technology:
- Active current 3mA, max.
- Standby current 1μA, max.
- 2-Wire Serial Interface, I²C™ Compatible
- Packages with 3 Address Pins are Cascadable up to 8 Devices
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce 100kHz and 400kHz Clock Compatibility
- 1 MHz Clock for FC versions
- Page Write Time 5 ms, max.
- Self-timed Erase/Write Cycle
- 32-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection >4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention >200 Years
- Factory Programming Available
- Packages include 8-lead PDIP, SOIC, SOIJ, TSSOP, X-Rotated TSSOP, MSOP, DFN, TDFN, 5-lead SOT-23 or Chip Scale
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC64FT-I/OT#C616247MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 501 | ₹113.86 · 501 in stock | View |
 | 24LC64FT-E/OT#C616246MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 10 | ₹133.86 · 10 in stock | View |
 | 24LC64T-E/OT#C616248MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 98 | ₹126.72 · 98 in stock | View |
 | 24AA64T-I/OT#C2061092MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 5,227 | ₹75.24 · 5,227 in stock | View |
 | 24AA64FT-I/OT#C2061144MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,199 | ₹151.14 · 2,199 in stock | View |
