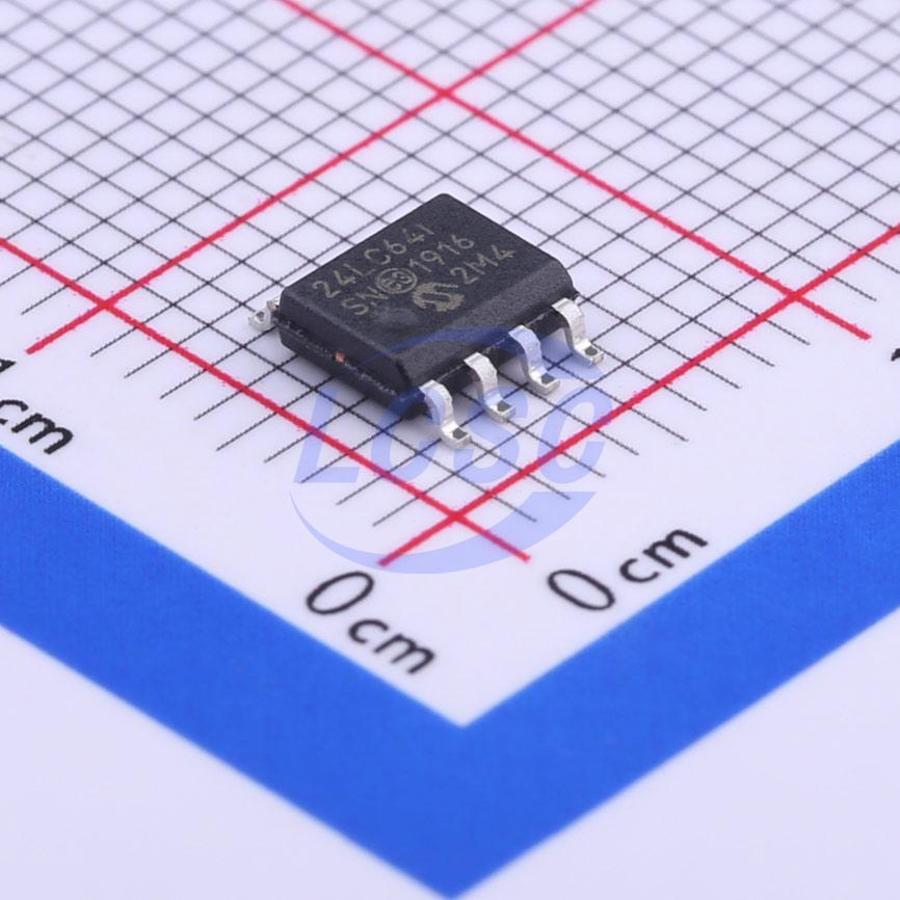

24LC64T-I/SN

The 24AA64/24LC64 (24XX64*) is a 64 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 1x8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.8V with standby and active currents of only 1 μA and 1 mA respectively. It has been developed for advanced, low power applications such as personal communications or data acquisition. The 24XX64 also has a page-write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512 Kbits address space. The 24XX64 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages.

Key features

• Single supply with operation down to 1.8V
• Low power CMOS technology - 1 mA active current typical - 1 μA standby current (max.) (I-temp)
• Organized as 8 blocks of 8K bit (64K bit)
• 2-wire serial interface bus, I²C™ compatible
• Cascadable for up to eight devices
• Schmitt Trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (24AA64) and 400 kHz (24LC64) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 32 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection >4,000V
• 1,000,000 erase/write cycles
• Data retention >200 years
• 8-lead PDIP, SOIC, TSSOP, and MSOP package
• Available temperature ranges: - Industrial (I): -40℃ to +85℃ - Automotive (E): -40℃ to +125℃
