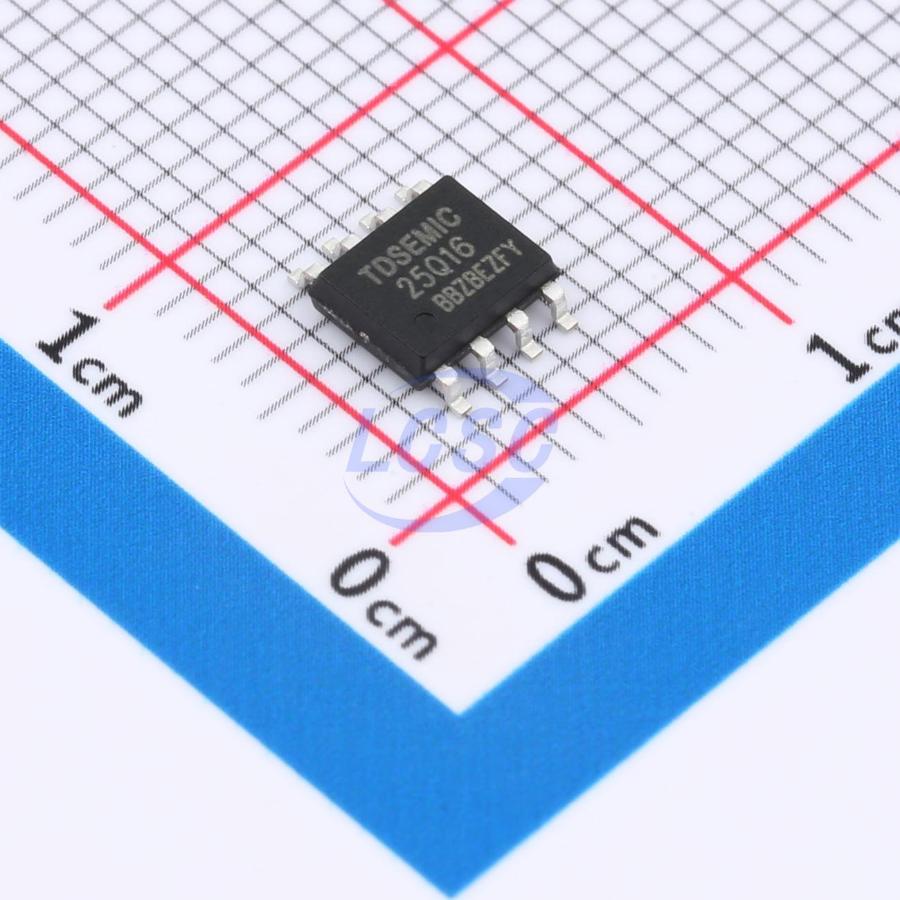

25Q16DR-TD
FLASH - NOR Memory IC 16Mbit SPI SOP-8-150mil
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,664 in stock
#C49211305
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.58 | ₹87.58 |
| 10+ | ₹77.58 | ₹775.80 |
| 30+ | ₹72.37 | ₹2,171.10 |
| 100+ | ₹67.59 | ₹6,759.00 |
| 500+ | ₹64.55 | ₹32,275.00 |
| 1,000+ | ₹63.03 | ₹63,030.00 |
1 × ₹87.58
₹87.58
excl. GST
₹103.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
25Q16DR-TD
₹87.58 for 1 + GST
Specifications
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 108MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 160us
- Standby Supply Current
- 2.5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The 25Q16 is 16M-bit Serial Peripheral Interface (SPI) Flash memory and support the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI as well as 2-clocks instruction cycle Quad Peripheral Interface (QPI): Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (WP), and I/O3 (I/OLD), SPI clock frequencies of up to 108MHz are supported allowing equivalent clock rates of 216MHz (108MHz x 2) for Dual I/O and 432MHz (108MHzx4) for Quad I/O when using the Fast Read Dual/Quad and QPI instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The Continuous Read Mode allows for efficient me
