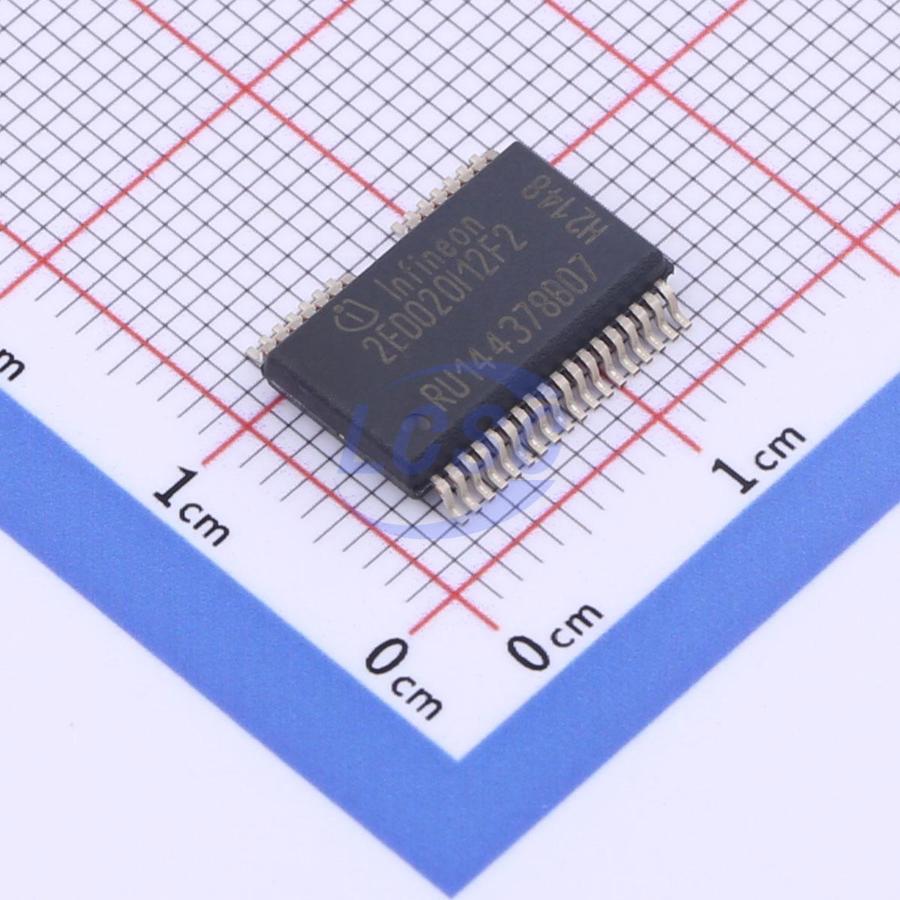

Infineon

2ED020I12-F2

Half-Bridge 2 MOSFET、IGBT 30ns 50ns 2A DSO-36 Power Management - Specialized RoHS

DSO-36ROHS CompliantActive

Manufacturer: Infineon
Manufacturer part #: 2ED020I12-F2
Store part #: C2916131
Package / case: DSO-36
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,055 in stock

#C2916131

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹896.97	₹896.97
10+	₹750.91	₹7,509.10
30+	₹661.71	₹19,851.30
100+	₹587.05	₹58,705.00

Quantity (min 1)

1 × ₹896.97

₹896.97

excl. GST

₹1,058.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

2ED020I12-F2

₹896.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Driven Configuration: Half-Bridge
Features: Saturation fault detection;Miller clamp protection
Number of Lines: 2
Peak Output Current(Source): 2A
Propagation Delay tpHL: 170ns
Load Type: MOSFET、IGBT
Input Logic Level - High: 3.5V~5.5V
Rise Time: 30ns
Fall Time: 50ns
Propagation Delay tpLH: 165ns
Current - Output Low(IOL): 2A
Operating Temperature: -40℃~+125℃
Quiescent Current: 7mA
Input Logic Level - Low: 0V~1.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.21 g

Overview

Key features

Dual-channel isolated IGBT driver
For 600V/1200V IGBTs
2A rail-to-rail output
Vcesat detection active Miller clamp
Coreless

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	2ED020I12FAXUMA2#C2653822Infineon · DSO-36	Infineon	DSO-36	39	₹1,445.72 · 39 in stock	View
