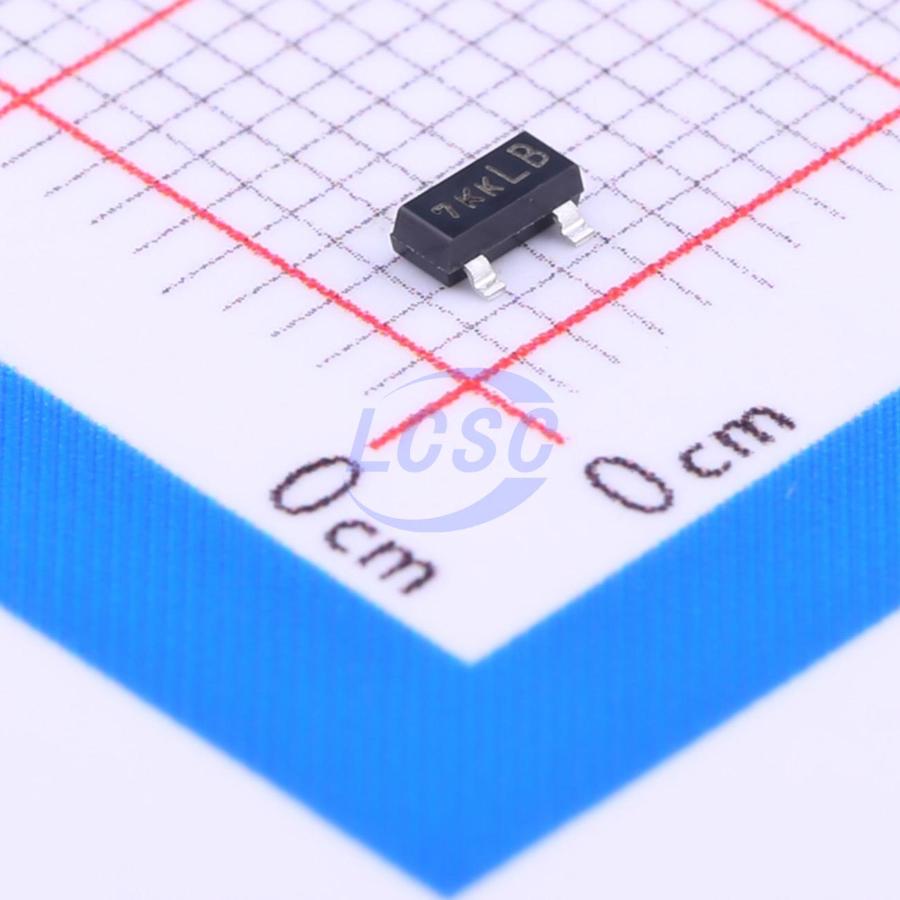

VISHAYDatasheet (PDF)
2N7002K-T1-GE3
N-Channel 60V 300mA 0.35W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 60V 300mA SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- 2N7002K-T1-GE3
- Store part #
- C81445
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,03,590 in stock
#C81445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.15 | ₹28,350.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002K-T1-GE3
₹67.10 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 350mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 600pC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.165 g
Overview
Applications
- Direct Logic-Level Interface: TTL/CMOS
- Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
- Battery Operated Systems
- Solid-State Relays
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- Low On-Resistance: 2 Ω
- Low Threshold: 2 V (typ.)
- Low Input Capacitance: 25 pF
- Fast Switching Speed: 25 ns
- Low Input and Output Leakage
- TrenchFET Power MOSFET
- 2000 V ESD Protection
- Compliant to RoHS Directive 2002/95/EC
- Low Offset Voltage
- Low-Voltage Operation
- Easily Driven Without Buffer
- High-Speed Circuits
- Low Error Voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002K-T1-E3#C727276VISHAY · SOT-23 | VISHAY | SOT-23 | 7,980 | ₹13.40 · 7,980 in stock | View |
 | 2N7002K#C5354006XCH · SOT-23 | XCH | SOT-23 | 1,750 | ₹2.24 · 1,750 in stock | View |
 | 2N7002KG-AE2-R#C487769UTC · SOT-23-3 | UTC | SOT-23-3 | 2,920 | ₹3.59 · 2,920 in stock | View |
 | 2N7002B#C41349566Siliup · SOT-23 | Siliup | SOT-23 | 1,550 | ₹1.87 · 1,550 in stock | View |
 | 2N7002K#C5240370TWGMC · SOT-23 | TWGMC | SOT-23 | 46,700 | ₹1.96 · 46,700 in stock | View |
