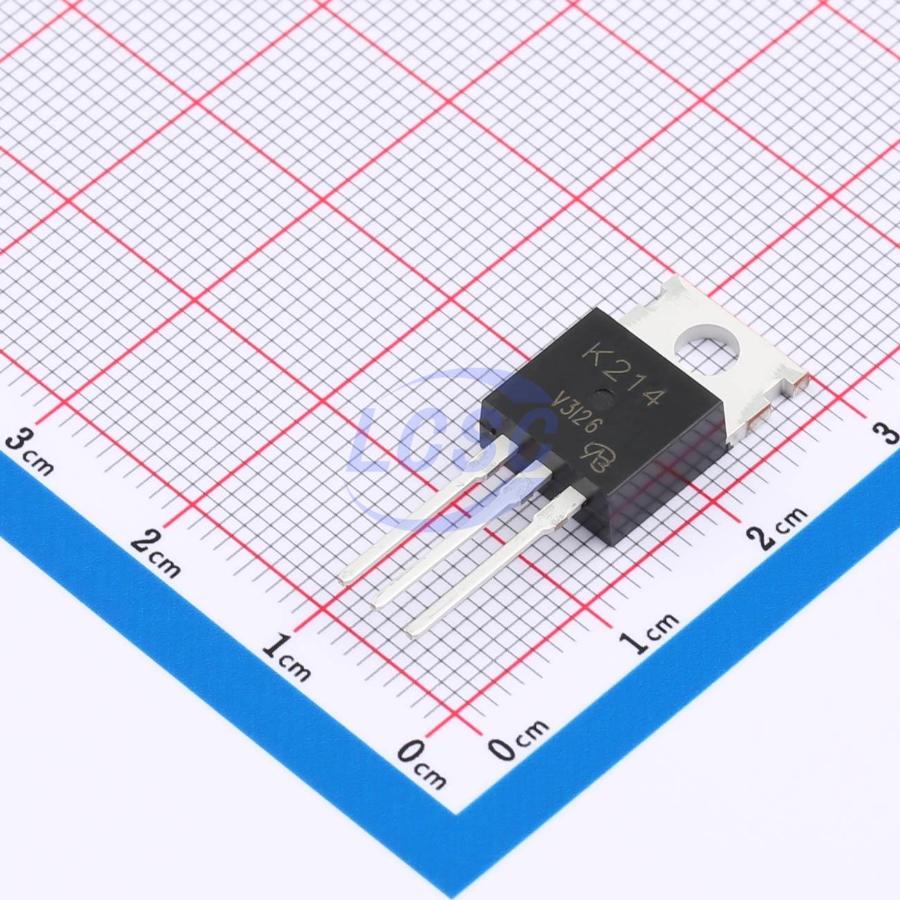

2SK214-E-VB
N-Channel 150V 50A 165W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 150V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK214-E-VB
- Store part #
- C18795055
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C18795055
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK214-E-VB
₹201.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 165W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.755 g
Overview
Applications
- Primary-side switch
- N-channel MOSFET
Key features
- Trench power MOSFET
- 175 °C junction temperature
- New low thermal resistance package
- PWM optimized
- RoHS compliant with directive 2002/95/EC
