VBsemi ElecDatasheet (PDF)

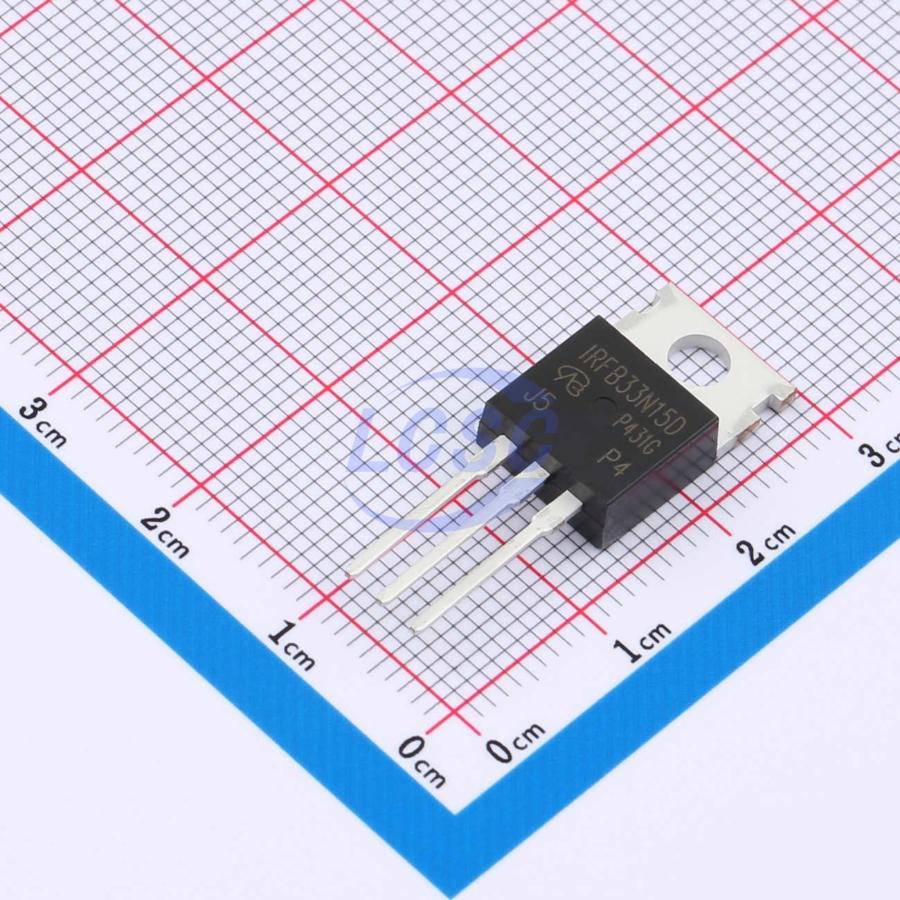

IRFB33N15DPBF-VB
N-Channel 150V 50A 165W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 150V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFB33N15DPBF-VB
- Store part #
- C29779381
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779381
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.84 | ₹192.84 |
| 10+ | ₹159.43 | ₹1,594.30 |
| 50+ | ₹141.16 | ₹7,058.00 |
| 100+ | ₹120.37 | ₹12,037.00 |
| 500+ | ₹111.12 | ₹55,560.00 |
| 1,000+ | ₹107.14 | ₹1,07,140.00 |
1 × ₹192.84
₹192.84
excl. GST
₹227.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB33N15DPBF-VB
₹192.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 165W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.13 g
Overview
Applications
- Primary-side switch - N-channel MOSFET
Key features
- Trench power MOSFET
- 175°C junction temperature
- New low thermal resistance package
- PWM optimized
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK214-E-VB#C18795055VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹201.03 · 20 in stock | View |
 | HUF75842P3-VB#C29779094VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹192.84 · 4 in stock | View |
 | IRFB61N15DPBF-VB#C20626377VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹201.03 · 10 in stock | View |
 | FQP46N15-VB#C20755035VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹201.03 · 10 in stock | View |
 | RJK1536DPN-VB#C20755580VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹201.03 · 10 in stock | View |
