VBsemi ElecDatasheet (PDF)

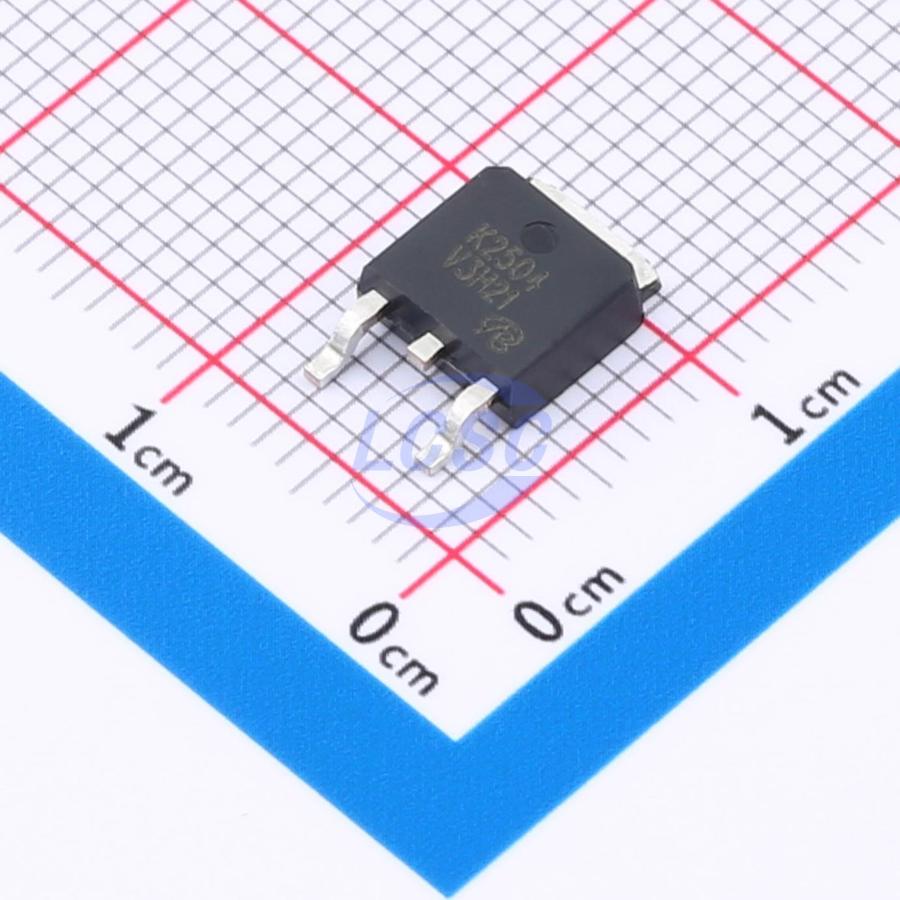

2SK2504TL-VB
3W 100V 15A 140mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2504TL-VB
- Store part #
- C19626778
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C19626778
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.63 | ₹69.63 |
| 10+ | ₹55.24 | ₹552.40 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹41.26 | ₹4,126.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹69.63
₹69.63
excl. GST
₹82.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK2504TL-VB
₹69.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@50V,10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.358 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant, directive 2002/95/EC
