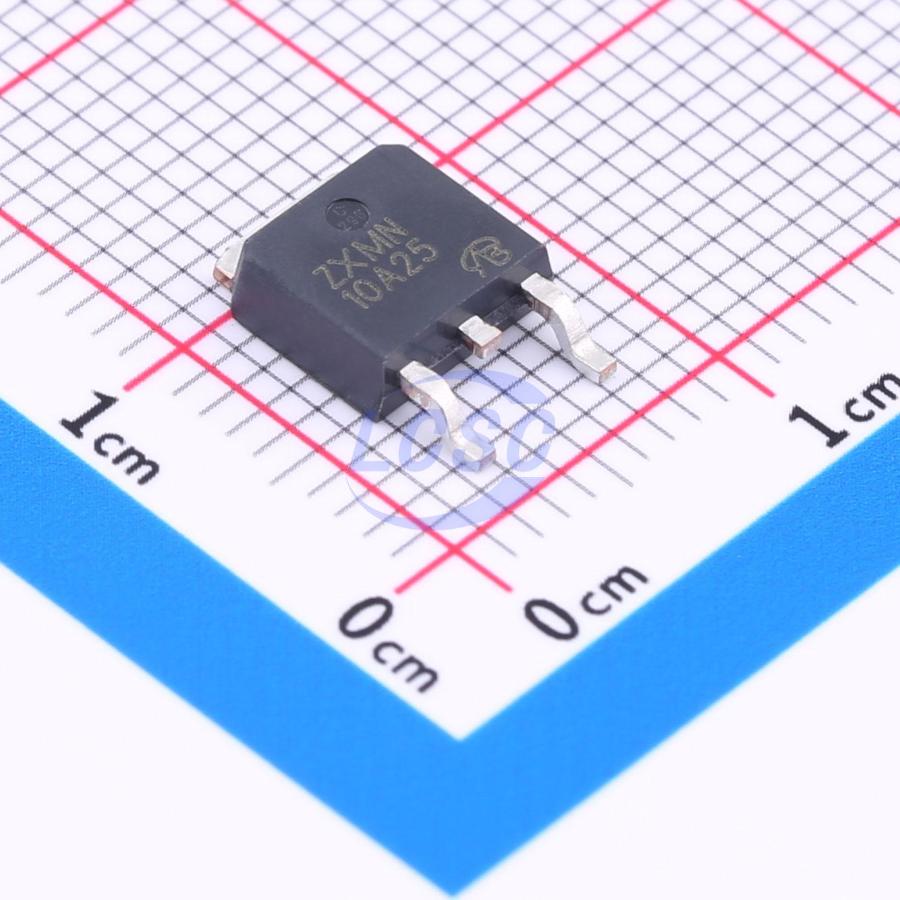

ZXMN10A25KTC-VB
N-Channel 100V 15A 3W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ZXMN10A25KTC-VB
- Store part #
- C19632188
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19632188
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.28 | ₹68.28 |
| 10+ | ₹54.20 | ₹542.00 |
| 30+ | ₹48.32 | ₹1,449.60 |
| 100+ | ₹40.76 | ₹4,076.00 |
| 500+ | ₹37.40 | ₹18,700.00 |
| 1,000+ | ₹35.30 | ₹35,300.00 |
1 × ₹68.28
₹68.28
excl. GST
₹80.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMN10A25KTC-VB
₹68.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MDD1904RH-VB#C2680740VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 41 | ₹67.22 · 41 in stock | View |
 | D10N10TA-VB#C19188202VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹69.07 · 50 in stock | View |
 | AP18T10GH-VB#C20755644VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹68.28 · 45 in stock | View |
 | 2SK2504TL-VB#C19626778VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹69.63 · 18 in stock | View |
 | RU1HE12L-VB#C18212472VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹69.07 · 10 in stock | View |
