VBsemi ElecDatasheet (PDF)

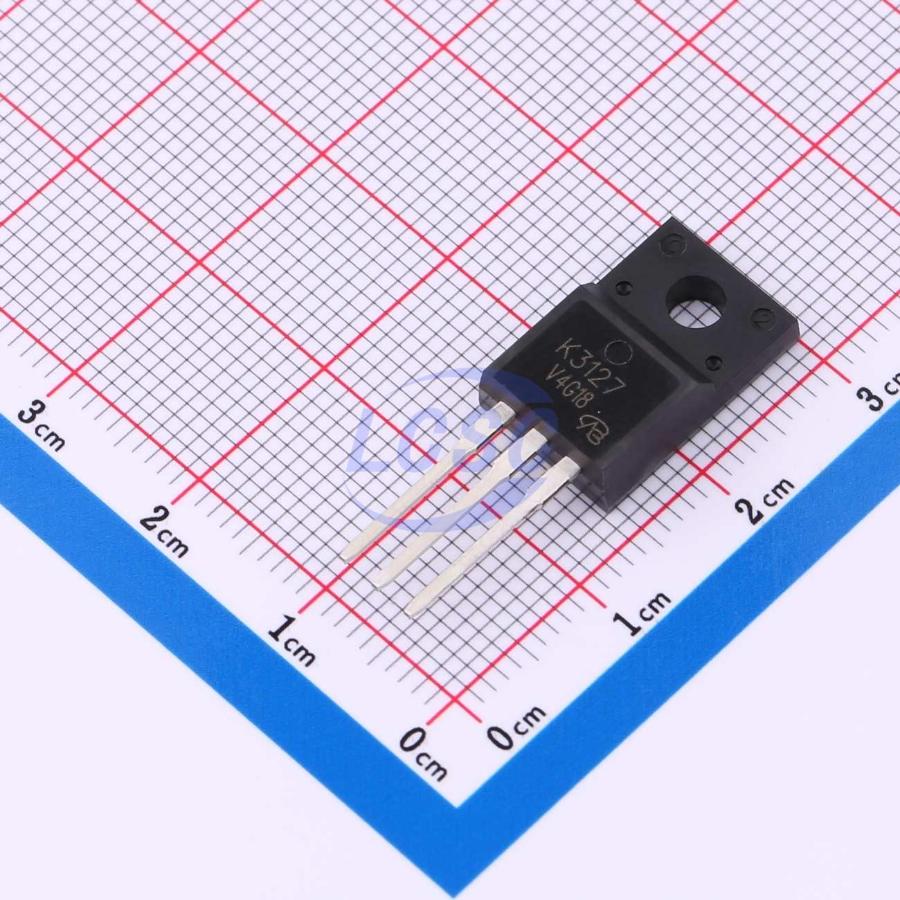

2SK3127-VB
N-Channel 30V 68.8A 250W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 30V 68.8A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3127-VB
- Store part #
- C29779083
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C29779083
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 50+ | ₹58.40 | ₹2,920.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK3127-VB
₹82.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.2nF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 68.8A
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
Applications
- OR-gate connection
- Server
- DC-DC conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF40NF03L-VB#C29778710VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹82.56 · 10 in stock | View |
 | STP45NF3LLFP-VB#C29779364VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 8 | ₹82.56 · 8 in stock | View |
 | 2SK2890-01MR-VB#C20417477VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹99.99 · 40 in stock | View |
 | K3754-VB#C20755370VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 25 | ₹98.62 · 25 in stock | View |
 | VBMB1311#C516962VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹75.86 · 6 in stock | View |
