VBsemi ElecDatasheet (PDF)

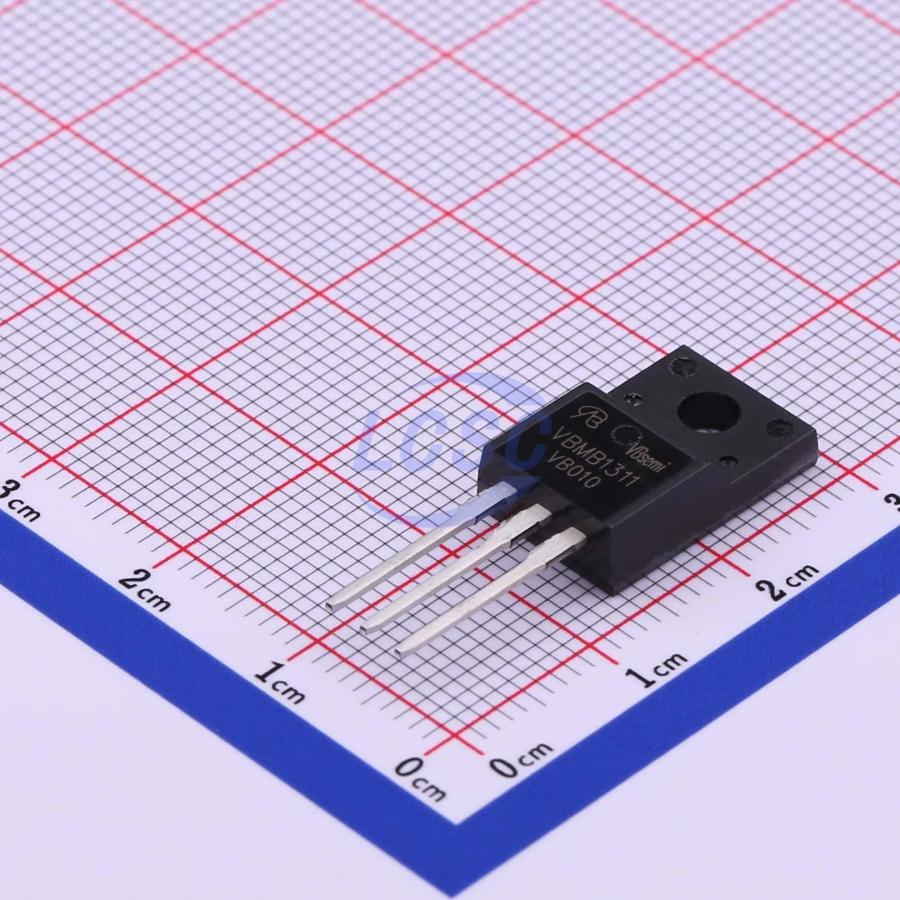

VBMB1311
N-Channel 30V 68A 250W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 30V 68A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB1311
- Store part #
- C516962
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C516962
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.86 | ₹75.86 |
| 10+ | ₹60.49 | ₹604.90 |
| 50+ | ₹51.90 | ₹2,595.00 |
| 100+ | ₹44.32 | ₹4,432.00 |
| 500+ | ₹39.93 | ₹19,965.00 |
| 1,000+ | ₹37.53 | ₹37,530.00 |
1 × ₹75.86
₹75.86
excl. GST
₹89.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB1311
₹75.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 68A
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 10mΩ@10V;12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V;81.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.477 g
Overview
Applications
- OR gate
- Server
- DC-DC converter
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
