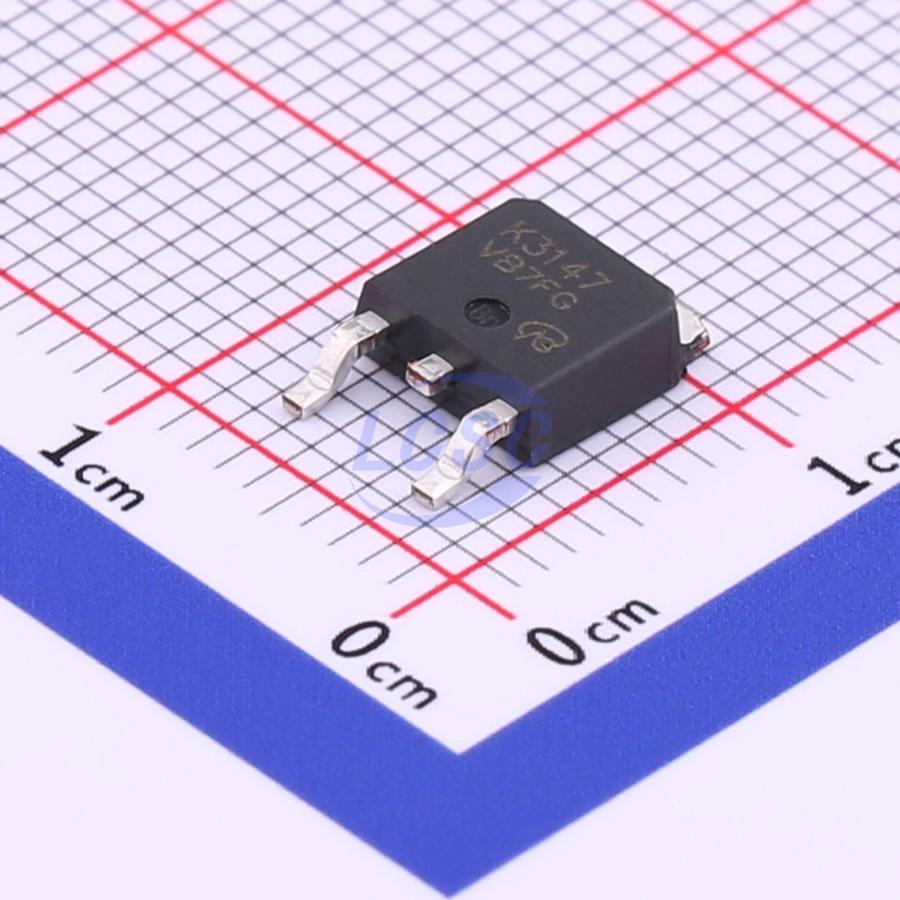

2SK3147S-VB
N-Channel 100V 15A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3147S-VB
- Store part #
- C709871
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C709871
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.81 | ₹77.81 |
| 10+ | ₹63.40 | ₹634.00 |
| 30+ | ₹57.39 | ₹1,721.70 |
| 100+ | ₹49.65 | ₹4,965.00 |
| 500+ | ₹39.98 | ₹19,990.00 |
| 1,000+ | ₹37.82 | ₹37,820.00 |
1 × ₹77.81
₹77.81
excl. GST
₹91.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK3147S-VB
₹77.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 96W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150 °C
- PWM optimized
- 100% Rg tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3147STL-E-VB#C18212506VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹65.75 · 1 in stock | View |
 | 2SK1254S-VB#C20755027VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 240 | ₹65.75 · 240 in stock | View |
 | FS10ASJ-2-VB#C22389724VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹70.54 · 20 in stock | View |
 | 2SK3618-TL-E-VB#C29778773VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
 | 2SK429-VB#C29779155VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
