VBsemi ElecDatasheet (PDF)

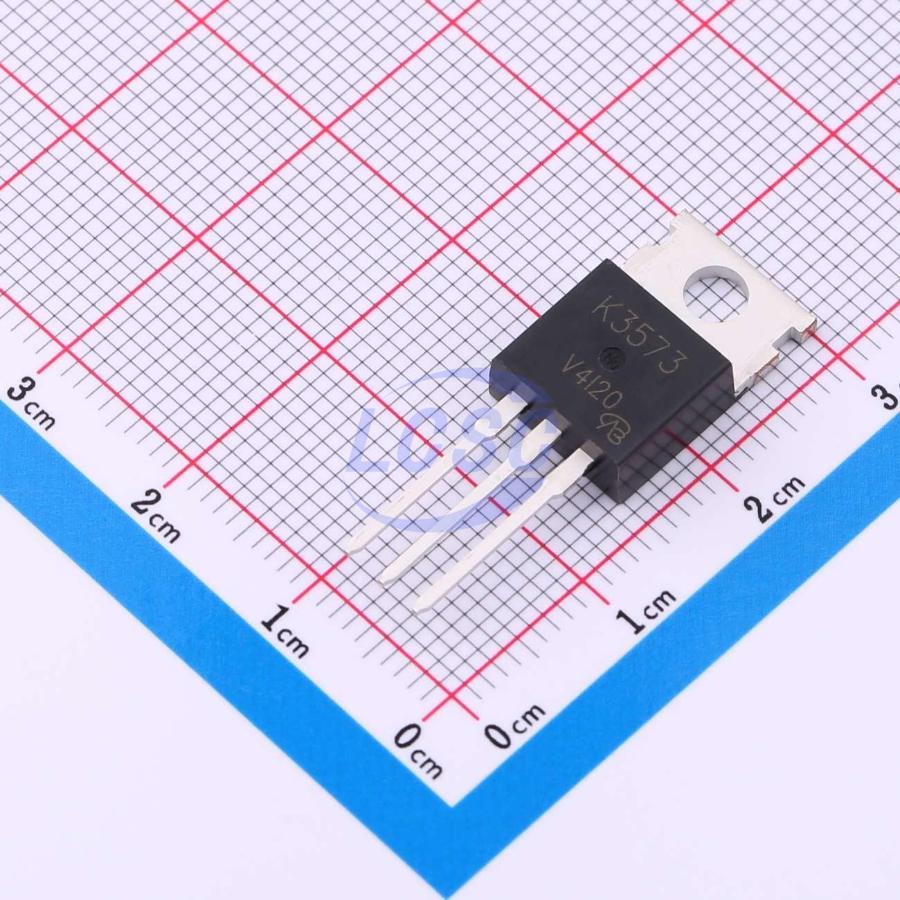

2SK3573-VB
N-Channel 20V 100A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 20V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3573-VB
- Store part #
- C41369957
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41369957
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.47 | ₹78.47 |
| 10+ | ₹64.06 | ₹640.60 |
| 50+ | ₹52.52 | ₹2,626.00 |
| 100+ | ₹45.31 | ₹4,531.00 |
| 500+ | ₹40.99 | ₹20,495.00 |
| 1,000+ | ₹38.72 | ₹38,720.00 |
1 × ₹78.47
₹78.47
excl. GST
₹92.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK3573-VB
₹78.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 125W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 600pF
- RDS(on)
- 4mΩ@4.5V;5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
