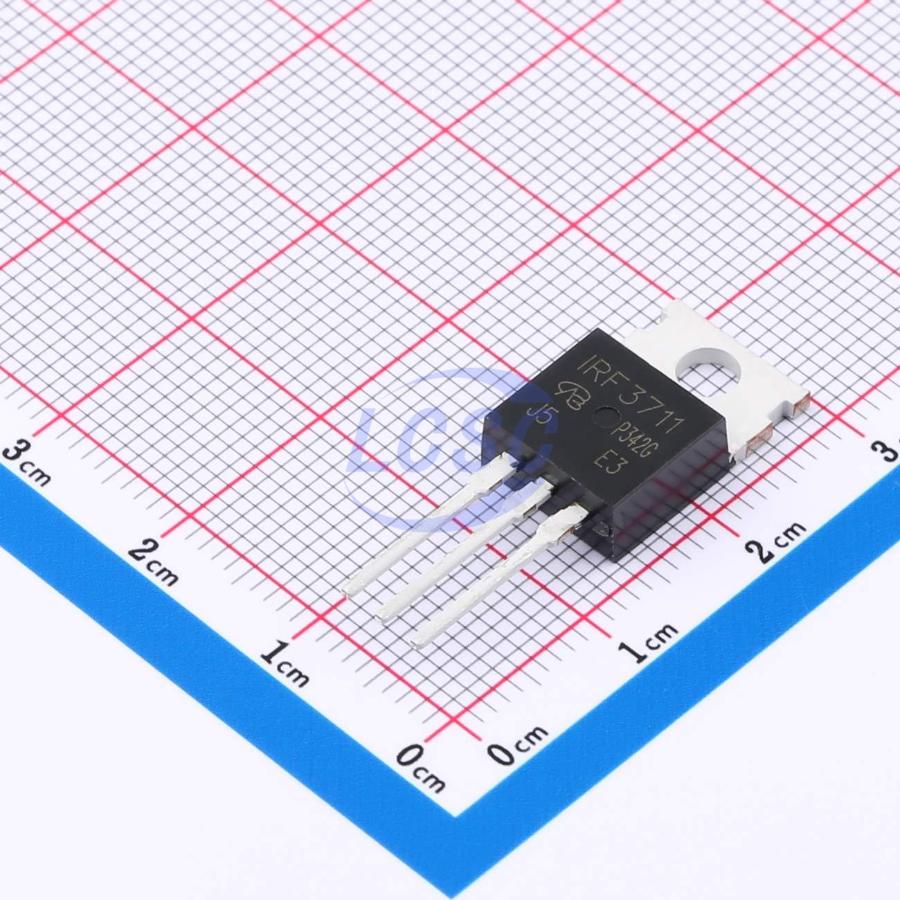

IRF3711PBF-VB
N-Channel 20V 100A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 20V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF3711PBF-VB
- Store part #
- C19626835
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C19626835
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.56 | ₹78.56 |
| 10+ | ₹63.86 | ₹638.60 |
| 50+ | ₹56.51 | ₹2,825.50 |
| 100+ | ₹49.37 | ₹4,937.00 |
| 500+ | ₹44.96 | ₹22,480.00 |
| 1,000+ | ₹42.65 | ₹42,650.00 |
1 × ₹78.56
₹78.56
excl. GST
₹92.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF3711PBF-VB
₹78.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 600pF
- RDS(on)
- 4mΩ@4.5V;5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
Applications
- OR Gate - Server - DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL3502PBF-VB#C20755181VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹78.56 · 9 in stock | View |
 | 2SK3572-VB#C41369956VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹95.57 · 50 in stock | View |
 | 2SK3573-VB#C41369957VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹78.47 · 20 in stock | View |
 | 2SK3467-VB#C41369955VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹75.62 · 10 in stock | View |
 | FS70KM-06-VB#C19711241VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 10 | ₹147.88 · 10 in stock | View |
