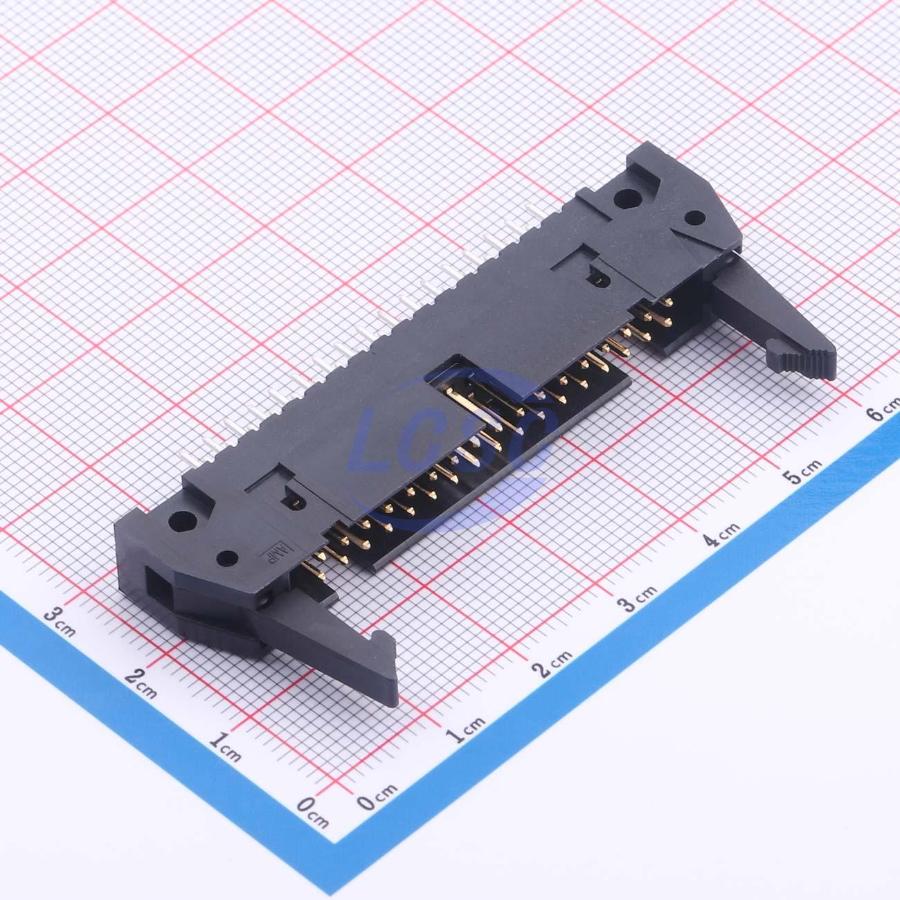

5499923-8

- Pop-up latch omitted from this view for clarity. - View S - S - Detail V, Scale 10:1 - Coordinate dimensions apply from basic position. - 10 and 14 pin sizes include only one slot for snap-in polarizer (dual polarization), position as shown. - Recommended PCB thickness: 3.18 [0.125]. - Distance required for pop-up latch in open position. - Material: housing and latch — glass-filled nylon or polyester, UL94V-0 rated, black; contacts — phosphor bronze or brass. - Contacts: in selective plating area, gold flash over palladium-nickel, minimum total thickness 0.38μm [0.000015]; solder tail minimum tin plating thickness 2.54μm [0.000100]; minimum nickel underplate thickness 1.27μm [0.000050] over entire contact; or, in selective plating area minimum gold plating thickness 0.38μm [0.000015], solder tail minimum tin plating thickness 2.54μm [0.000100], minimum nickel underplate thickness 1.27μm [0.000050] over entire contact. - Datums - M - and - N - are customer-defined.
