TDSEMICDatasheet (PDF)

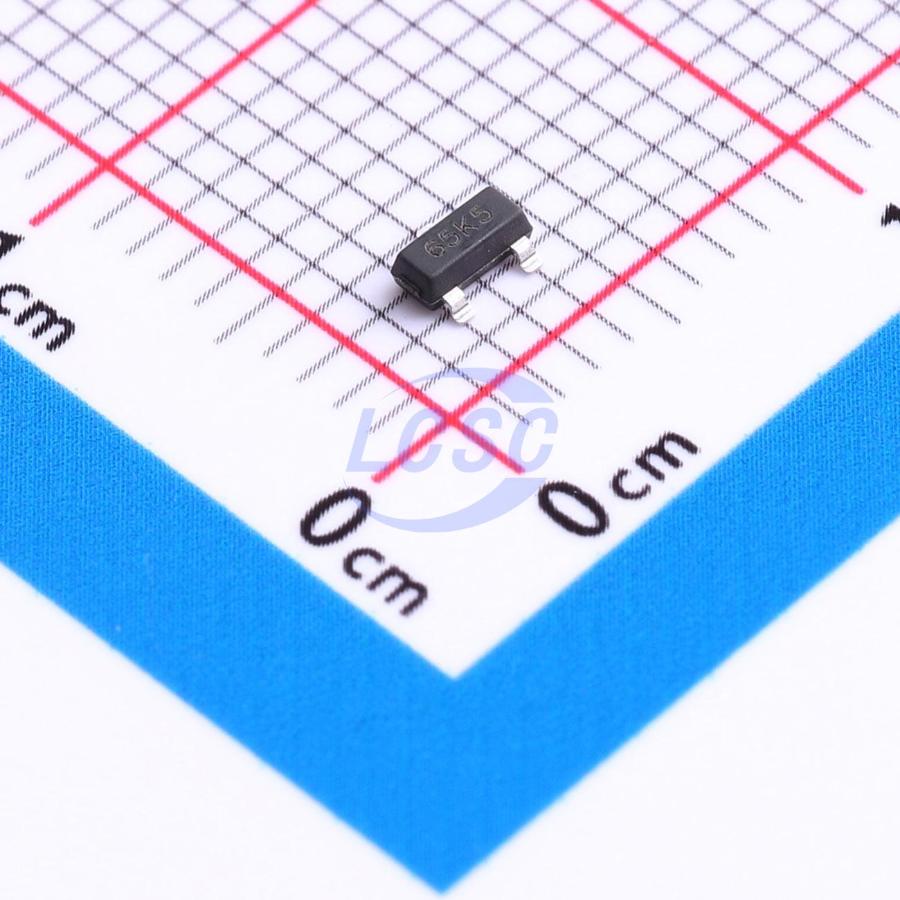

65K5-TD
1.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
IC REG LINEAR 1.8V 200mA SOT-23-3
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 65K5-TD
- Store part #
- C50675573
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C50675573
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.59 | ₹71.80 |
| 200+ | ₹2.79 | ₹558.00 |
| 600+ | ₹2.35 | ₹1,410.00 |
| 3,000+ | ₹2.10 | ₹6,300.00 |
| 9,000+ | ₹1.88 | ₹16,920.00 |
| 21,000+ | ₹1.75 | ₹36,750.00 |
20 × ₹3.59
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
65K5-TD
₹71.80 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.021 g
Overview
High ripple rejection ratio, low power consumption, low dropout CMOS step-down voltage regulator with overcurrent and short-circuit protection. These devices feature very low quiescent current (typical 6.5μA), capable of delivering 200mA output current at minimal input-to-output voltage differential while maintaining good regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suited for battery-powered applications requiring extended battery life, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Automotive electronics
- Voltage references
- Wireless control systems
Key features
- High-accuracy output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Usable as regulator and voltage reference
- Ultra-low quiescent current (typical = 6.5μA)
- Package: SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P182MR#C22466430TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 4,360 | ₹3.29 · 4,360 in stock | View |
