UMW

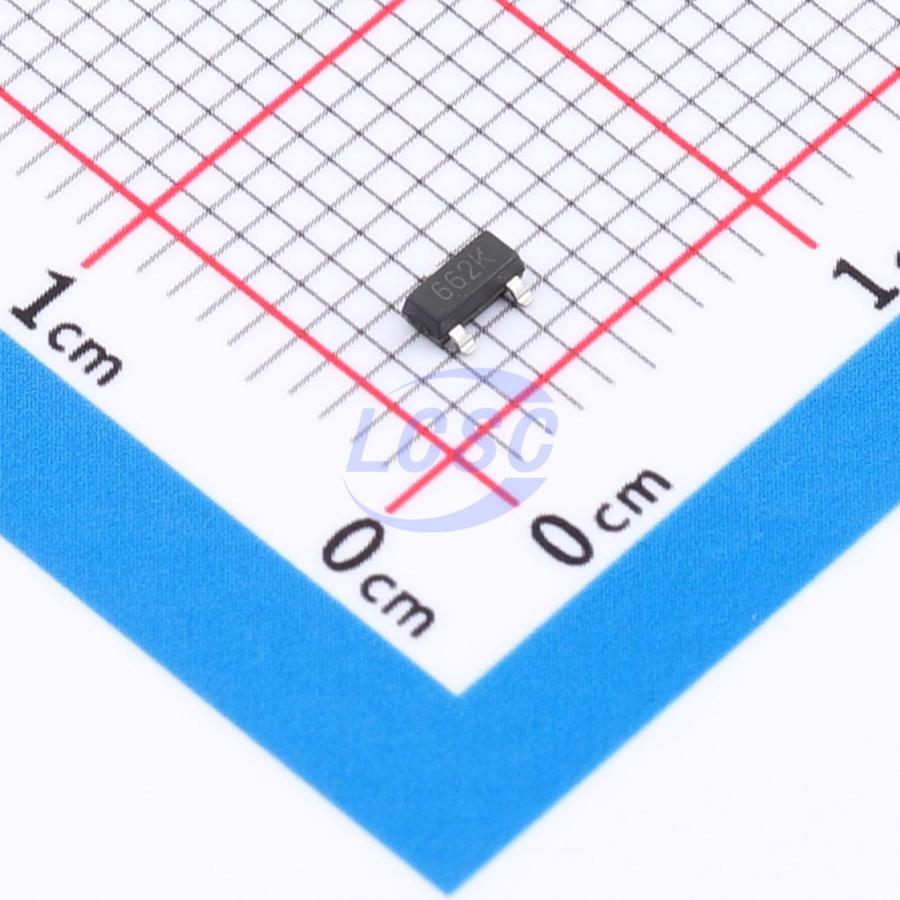

XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
TECH PUBLICDatasheet (PDF)
662K
1.5V~5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
IC REG LINEAR 250mA SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 662K
- Store part #
- C49452347
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,500 in stock
#C49452347
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.65 | ₹82.50 |
| 500+ | ₹1.30 | ₹650.00 |
| 3,000+ | ₹1.10 | ₹3,300.00 |
| 6,000+ | ₹0.979 | ₹5,874.00 |
| 24,000+ | ₹0.8732 | ₹20,956.80 |
| 51,000+ | ₹0.8203 | ₹41,835.30 |
50 × ₹1.65
₹82.50
excl. GST
₹97.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K
₹82.50 for 50 + GST
Specifications
- Output Voltage
- 1.5V~5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 1 g
Overview
The 662K is a high ripple rejection, low power, low dropout CMOS step-down voltage regulator with overcurrent and short-circuit protection. It features an extremely low quiescent current (typical 8uA), capable of delivering 250mA output current with minimal input-to-output voltage differential while maintaining good regulation. Thanks to its ultra-low dropout voltage and quiescent current, this device is ideally suited for battery-powered applications requiring extended battery life, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
Key features
- High-precision output voltage: ±3%
- Maximum operating voltage: 6.0V
- Output voltage range: 1.5V ~ 5.0V (step 0.1V)
- Ultra-low quiescent current (typical = 8uA)
- High current drive capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low dropout voltage: 0.2V/90mA and 0.40V/150mA
- Good line regulation: typical 0.03%/V
- Low temperature coefficient
- Usable as regulator and voltage reference
- Package: SOT23
