TDSEMICDatasheet (PDF)

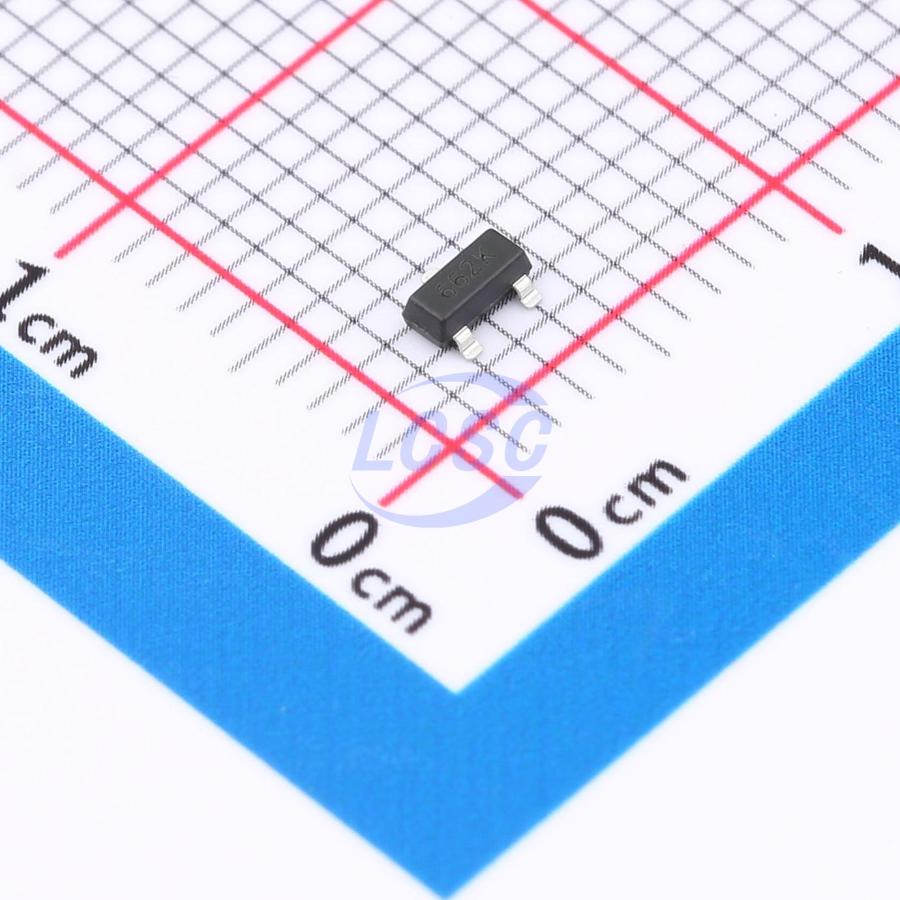

662K-TD
Linear Voltage Regulator IC 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 100mA SOT-23
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 662K-TD
- Store part #
- C49023328
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C49023328
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.61 | ₹130.50 |
| 500+ | ₹2.02 | ₹1,010.00 |
| 3,000+ | ₹1.71 | ₹5,130.00 |
| 6,000+ | ₹1.52 | ₹9,120.00 |
| 24,000+ | ₹1.35 | ₹32,400.00 |
| 51,000+ | ₹1.27 | ₹64,770.00 |
50 × ₹2.61
₹130.50
excl. GST
₹153.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K-TD
₹130.50 for 50 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.039 g
Overview
The 662K-TD is a high ripple rejection, low quiescent current, low dropout CMOS step-down LDO regulator with overcurrent and short-circuit protection. The device features an ultra-low typical quiescent current of 8.0μA, capable of delivering 250mA output current under minimal input-to-output voltage differential while maintaining good voltage regulation. Its low dropout voltage and low quiescent current characteristics make it well-suited for battery-powered applications requiring extended battery life.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
Key features
- High-accuracy output voltage: ±2.5%
- Maximum input voltage: 8V
- Output voltage range: 1.5V ~ 5.0V (0.1V step)
- High load capability: Iout=250mA at Vin=4.3V and Vout=3.3V
- Ultra-low quiescent current (typical 8.0μA)
- Suitable for use as voltage regulator and voltage reference
- Low temperature coefficient
- Excellent line regulation: typical 0.03%/V
- Package: SOT89-3, SOT23-3
