IDCHIPDatasheet (PDF)

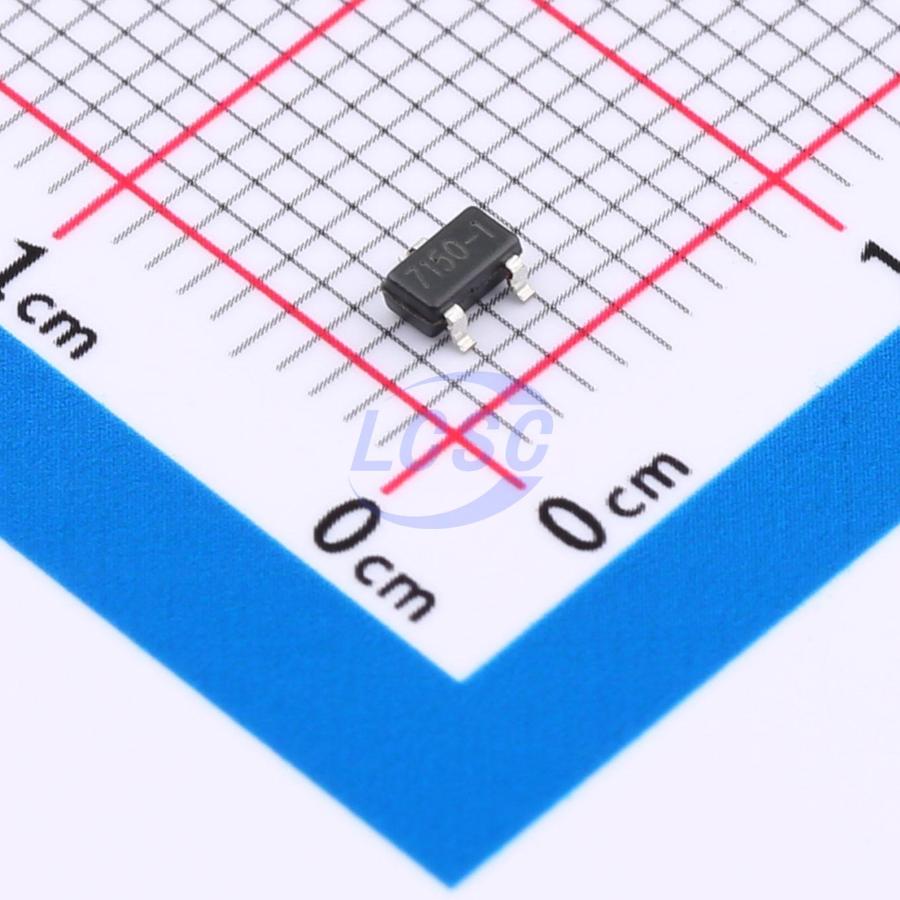

7150-1SOT23-3
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- IDCHIP
- Manufacturer part #
- 7150-1SOT23-3
- Store part #
- C42400997
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C42400997
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
7150-1SOT23-3
₹57.70 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
71xx-1 is a low-dropout linear regulator fabricated using CMOS technology. It supports a maximum output current of 100mA and a maximum input voltage of 36V. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. The CMOS process ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 7550-1SOT23-3#C42401003IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | 1,860 | ₹5.77 · 1,860 in stock | View |
 | 7350-1SOT23-3#C42401010IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | 430 | ₹8.32 · 430 in stock | View |
