IDCHIPDatasheet (PDF)

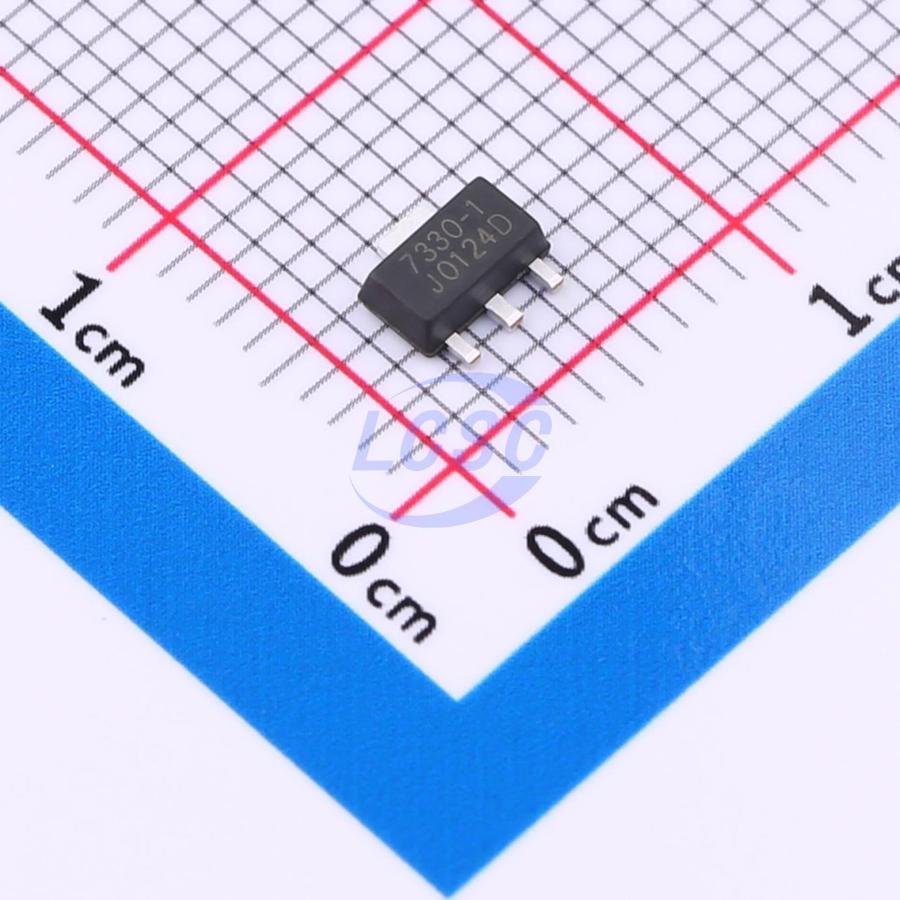

7330-1
Linear Voltage Regulator IC Fixed 300mA SOT-89
SOT-89ROHS CompliantActive
300mA LOW POWER LDO
- Manufacturer
- IDCHIP
- Manufacturer part #
- 7330-1
- Store part #
- C42401019
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,970 in stock
#C42401019
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.64 | ₹86.40 |
| 100+ | ₹6.84 | ₹684.00 |
| 300+ | ₹5.93 | ₹1,779.00 |
| 1,000+ | ₹5.25 | ₹5,250.00 |
| 5,000+ | ₹4.71 | ₹23,550.00 |
| 10,000+ | ₹4.43 | ₹44,300.00 |
10 × ₹8.64
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
7330-1
₹86.40 for 10 + GST
Specifications
- Output Voltage
- 3V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Current
- 300mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.159 g
Overview
73xx-1 is a low-dropout linear regulator using CMOS technology. It delivers a maximum output current of 300mA and supports a maximum input voltage of +48V. Several fixed output voltage options are available, ranging from +1.8V to +5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Maximum input voltage: +48V
- Typical quiescent current: 3uA
- Maximum output current: 300mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT89
