IDCHIPDatasheet (PDF)

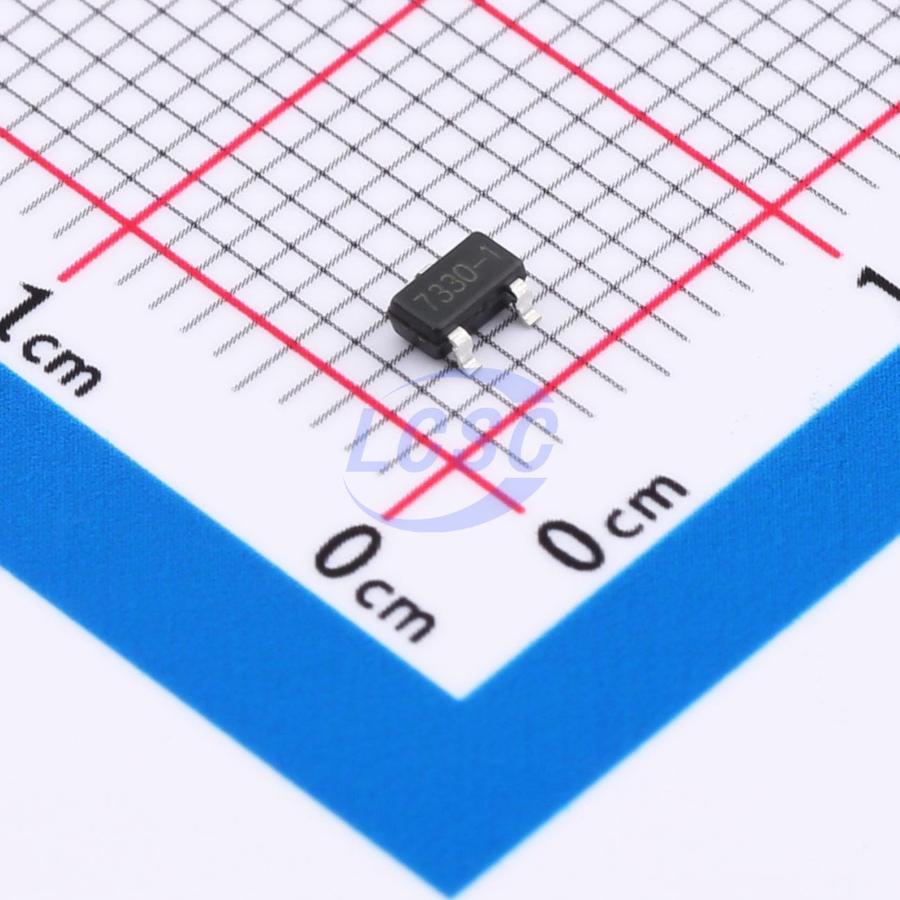

7330-1SOT23-3
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3ROHS CompliantActive
300mA LOW POWER LDO
- Manufacturer
- IDCHIP
- Manufacturer part #
- 7330-1SOT23-3
- Store part #
- C42401006
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C42401006
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.16 | ₹81.60 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.45 | ₹26,700.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹8.16
₹81.60
excl. GST
₹96.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
7330-1SOT23-3
₹81.60 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
73xx-1 is a low-dropout linear regulator using CMOS technology. It delivers a maximum output current of 300mA and supports a maximum input voltage of +48V. Several fixed output voltage options are available, ranging from +1.8V to +5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Maximum input voltage: +48V
- Typical quiescent current: 3uA
- Maximum output current: 300mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT89
