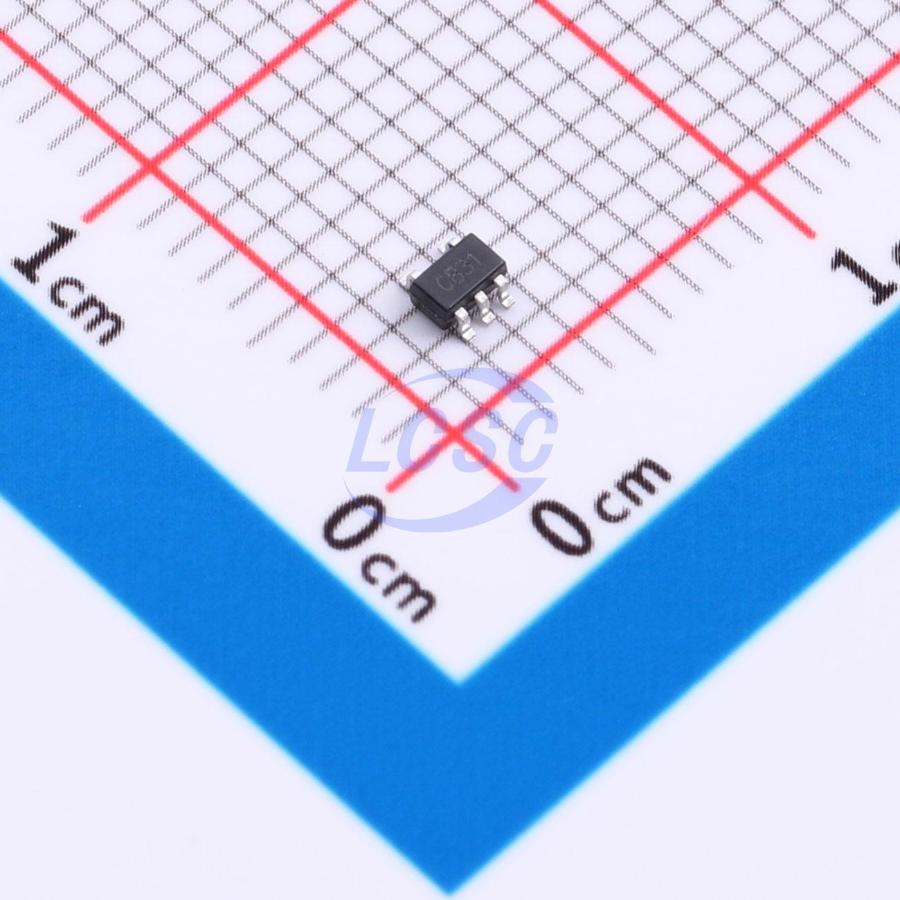

JSMSEMI

74AHC1G04GV,125-JSM

2V~5.5V 4.5ns@5.5V,50pF 40uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G04GV,125-JSM
Store part #: C53114364
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,710 in stock

#C53114364

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹10.07	₹100.70
100+	₹8.00	₹800.00
300+	₹6.99	₹2,097.00
3,000+	₹6.20	₹18,600.00
6,000+	₹5.60	₹33,600.00
9,000+	₹5.28	₹47,520.00

Quantity (min 10, multiples of 10)

10 × ₹10.07

₹100.70

excl. GST

₹118.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G04GV,125-JSM

₹100.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Propagation Delay: 4.5ns@5.5V,50pF
Input Logic Level - Low: 500mV;900mV;1.65V
Input Logic Level - High: 1.5V;2.1V;3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.58V;3.94V
Quiescent Current(Iq): 40uA
Number of Channels: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The 74AHC1G04 and 74AHCT1G04 are high-speed silicon-gate CMOS devices providing inverting buffer function. The 74AHC1G04 features CMOS input switching levels with a supply voltage range of 2V to 5.5V. The 74AHCT1G04 features TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
