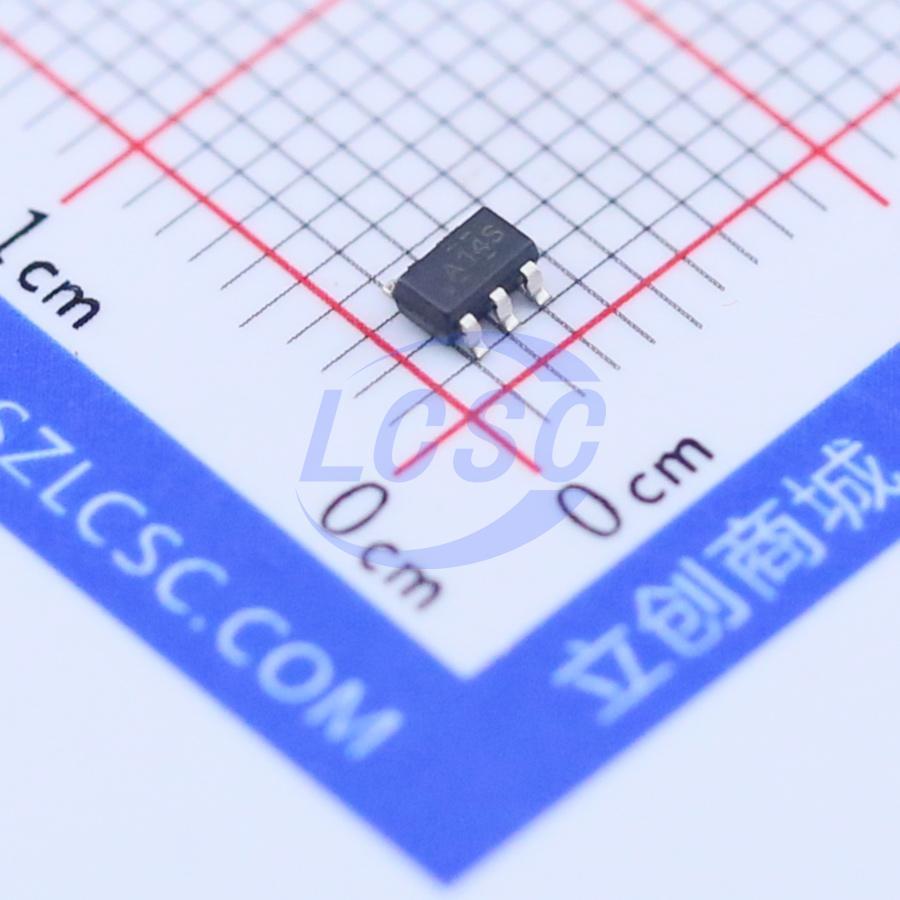

SN74AHC1G14DBVR

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 1uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Single Schmitt-Trigger Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74AHC1G14DBVR
Store part #: C7469
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,68,510 in stock

#C7469

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.71	₹97.10
100+	₹7.66	₹766.00
300+	₹6.63	₹1,989.00
3,000+	₹5.53	₹16,590.00
6,000+	₹4.91	₹29,460.00
9,000+	₹4.60	₹41,400.00

Quantity (min 10, multiples of 10)

10 × ₹9.71

₹97.10

excl. GST

₹114.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHC1G14DBVR

₹97.10 for 10 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 900mV~1.65V
Input Logic Level - High: 2.2V~3.85V
Output Logic Level - High: 3.94V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

The SN74AHC1G14 contains one inverter gate. The device performs the Boolean function Y = A(overline) The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.

Key features

Operating Range 2 V to 5.5 V
Max tpd of 10ns at 5 V
Low Power Consumption, 10 μA Max Icc
±8 mA Output Drive at 5 V
Latch-Up Performance Exceeds 250 mA Per JESD 17

Alternatives

Similar parts — check the datasheet before substituting.
