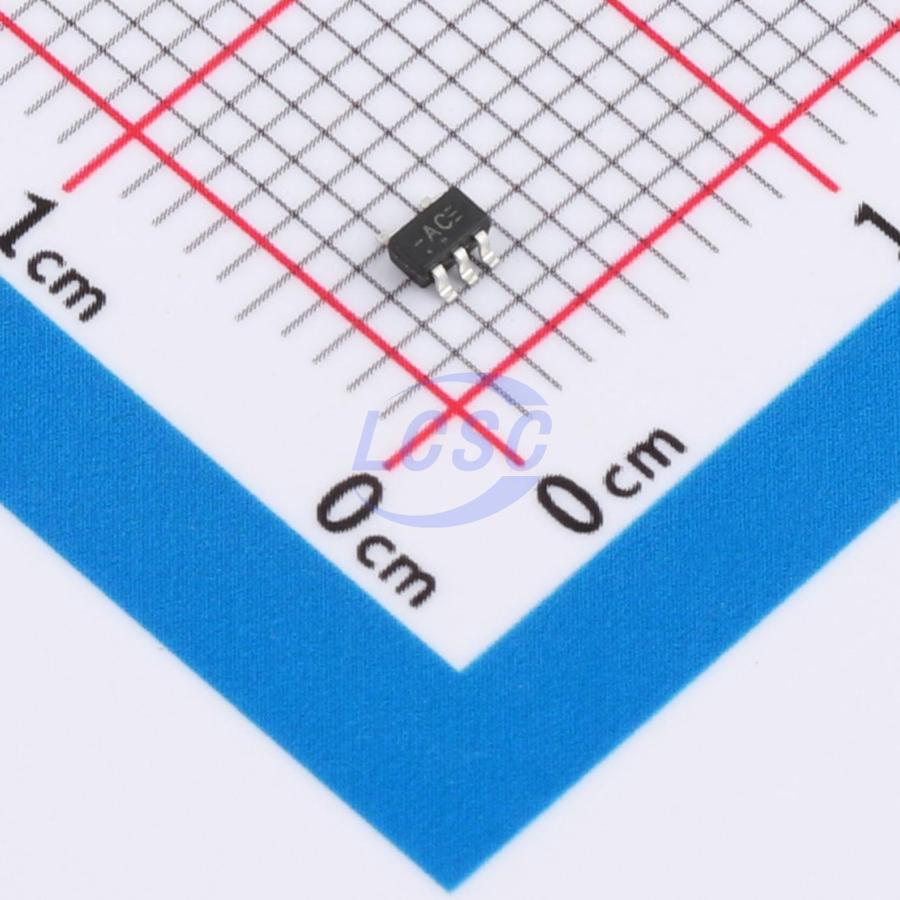

74AHC1G04SE-TP
1.65V~5.5V 7ns@5V,50pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G04SE-TP
- Store part #
- C52098181
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C52098181
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G04SE-TP
₹63.80 for 10 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 7ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74AHC1G04 is a single inverter gate with the logic function Y = Ā. The device features a built-in power-down protection circuit to prevent damage during power-down conditions.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Computing and networking
- Portable computing devices
Key features
- Operating voltage range: 1.65 ~ 5.5V
- Low quiescent current: I_CC = 10μA (max)
- Output drive capability: ±24mA (VCC=3.3V)
- High noise immunity
- Power-off protection
- ESD protection exceeds JESD 22 standard
- Human Body Model (A114-A): 2000V
- Charged Device Model (C101): 1000V
- Available in SOT23-5 package
- Available in SOT353 package
