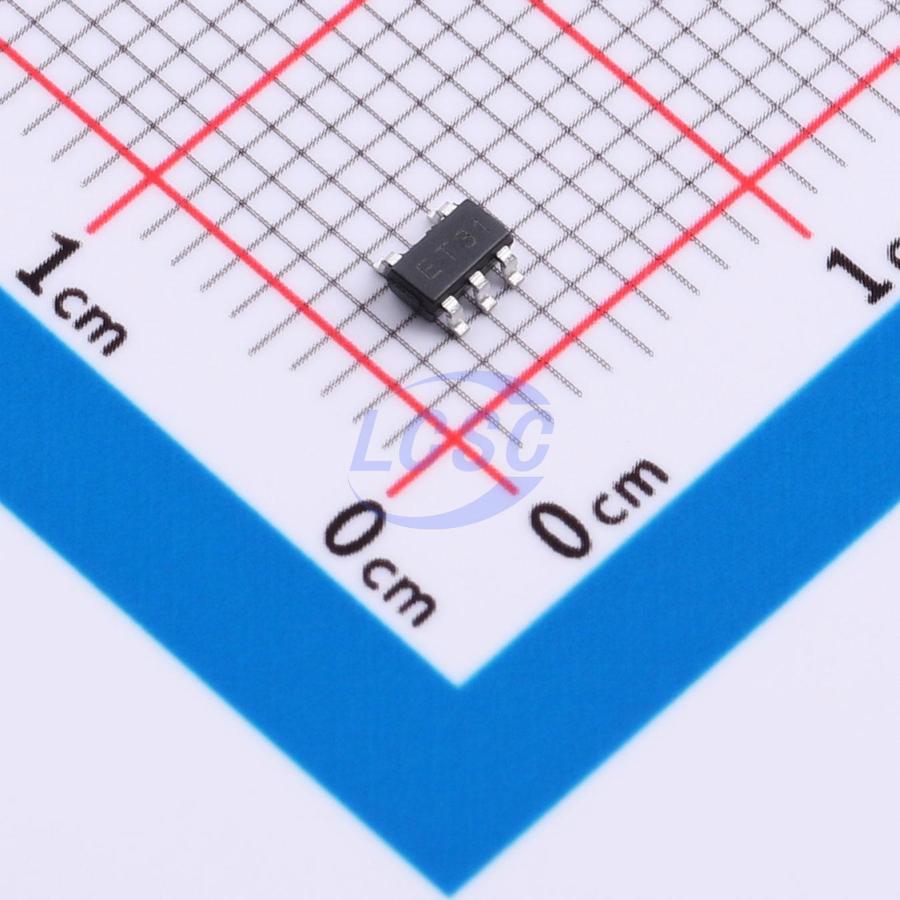

74AHC1G32GV,125-JSM
StandardCMOS 2V~5.5V 13ns@3V,50pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74AHC1G32GV,125-JSM
- Store part #
- C53114406
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C53114406
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.63 | ₹76.30 |
| 100+ | ₹6.07 | ₹607.00 |
| 300+ | ₹5.29 | ₹1,587.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.25 | ₹25,500.00 |
| 9,000+ | ₹4.01 | ₹36,090.00 |
10 × ₹7.63
₹76.30
excl. GST
₹90.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G32GV,125-JSM
₹76.30 for 10 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 13ns@3V,50pF
- Output Logic Level - Low
- 100mV;440mV
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.48V;3.8V
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
74AHC1G32 and 74AHCT1G32 are single 2-input OR gate ICs.
Key features
- Supply voltage range: 74AHC1G32: 2~5.5V; 74AHCT1G32: 4.5~5.5V
- Low power consumption
- Operating temperature range: -40°C~+125°C
- Package: SOT23-5/SOT353
