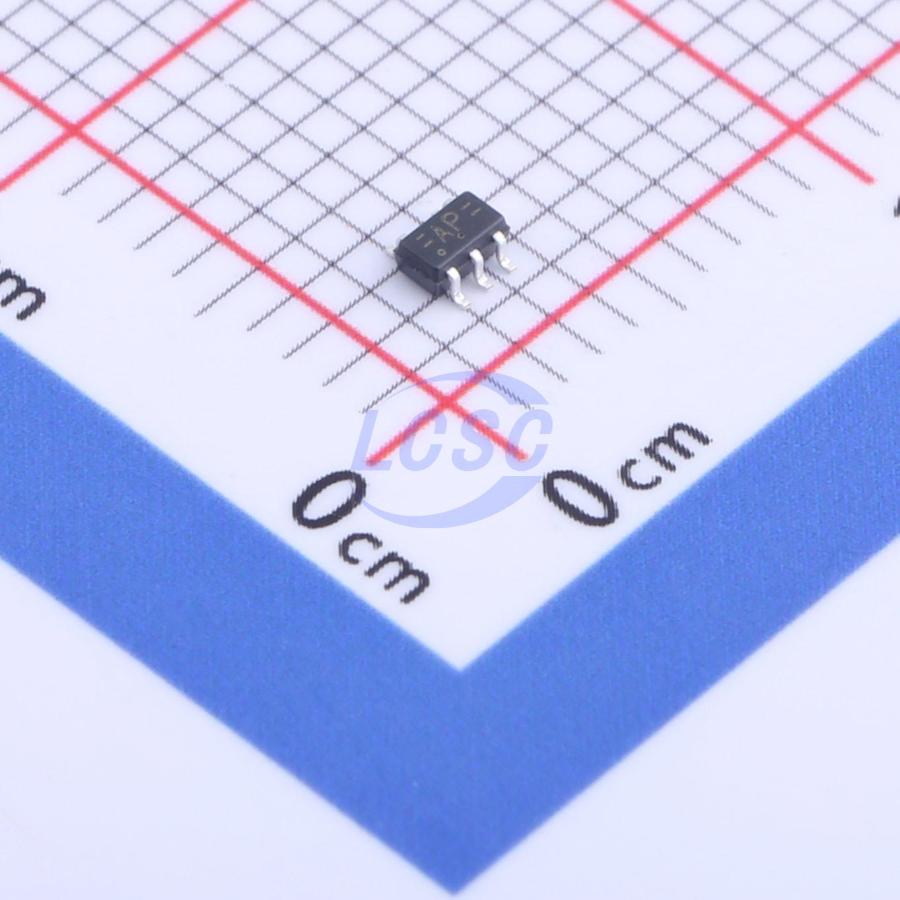

74AHC1G79GW,125
2V~5.5V 1 1 8ns@5V,50pF TSSOP-5-1.3mm Flip Flops RoHS
Single D-type flip-flop; positive-edge trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G79GW,125
- Store part #
- C554316
- Package / case
- TSSOP-5-1.3mm
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,840 in stock
#C554316
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.14 | ₹90.70 |
| 50+ | ₹14.30 | ₹715.00 |
| 150+ | ₹12.38 | ₹1,857.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 3,000+ | ₹9.79 | ₹29,370.00 |
| 6,000+ | ₹9.21 | ₹55,260.00 |
5 × ₹18.14
₹90.70
excl. GST
₹107.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G79GW,125
₹90.70 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 1
- Operating Temperature
- -40℃~+125℃
- Series
- 74AHC Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
- Quiescent Current
- 40uA
- Setup Time
- 3ns
- Hold Time
- 1ns
- Propagation Delay
- 8ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G79; 74AHCT1G79 is a single positive-edge triggered D-type flip-flop. Data at the D-input that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition will be stored in the flip-flop and appear at the Q output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels: For 74AHC1G79: CMOS level; For 74AHCT1G79: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +125 °C
