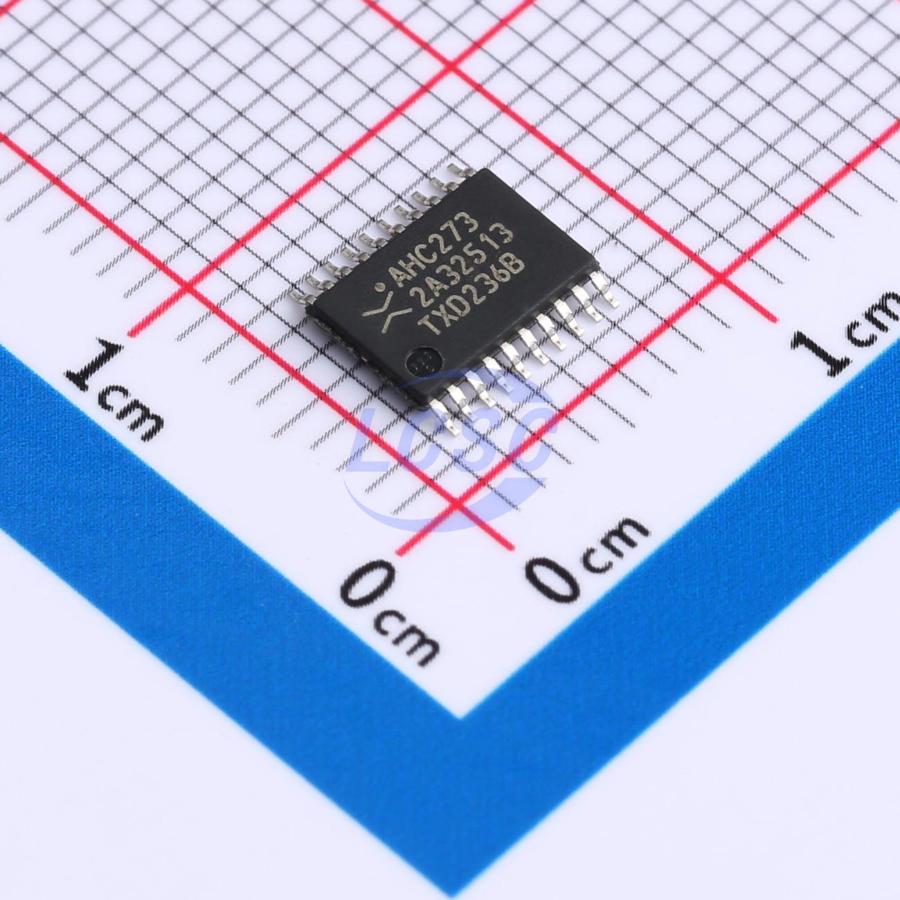

74AHC273PW,118
2V~5.5V 8 1 11ns@5V,50pF TSSOP-20 Flip Flops RoHS
Octal D-type flip-flop with reset; positive-edge trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC273PW,118
- Store part #
- C554347
- Package / case
- TSSOP-20
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,725 in stock
#C554347
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.91 | ₹204.55 |
| 50+ | ₹32.11 | ₹1,605.50 |
| 150+ | ₹28.34 | ₹4,251.00 |
| 500+ | ₹23.63 | ₹11,815.00 |
| 2,500+ | ₹21.54 | ₹53,850.00 |
| 5,000+ | ₹20.28 | ₹1,01,400.00 |
5 × ₹40.91
₹204.55
excl. GST
₹241.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHC273PW,118
₹204.55 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 8
- Operating Temperature
- -40℃~+125℃
- Series
- 74AHC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
- Setup Time
- 3ns
- Quiescent Current
- 4uA
- Hold Time
- 1ns
- Propagation Delay
- 11ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The 74AHC273; 74AHCT273 is an octal positive-edge triggered D-type flip-flop. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding D inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR forces the outputs LOW independently of clock and data inputs. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- All inputs have Schmitt-trigger actions
- Ideal buffer for MOS microcontroller or memory
- Common clock and master reset
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Input levels: For 74AHC273: CMOS level For 74AHCT273: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
