NexperiaDatasheet (PDF)

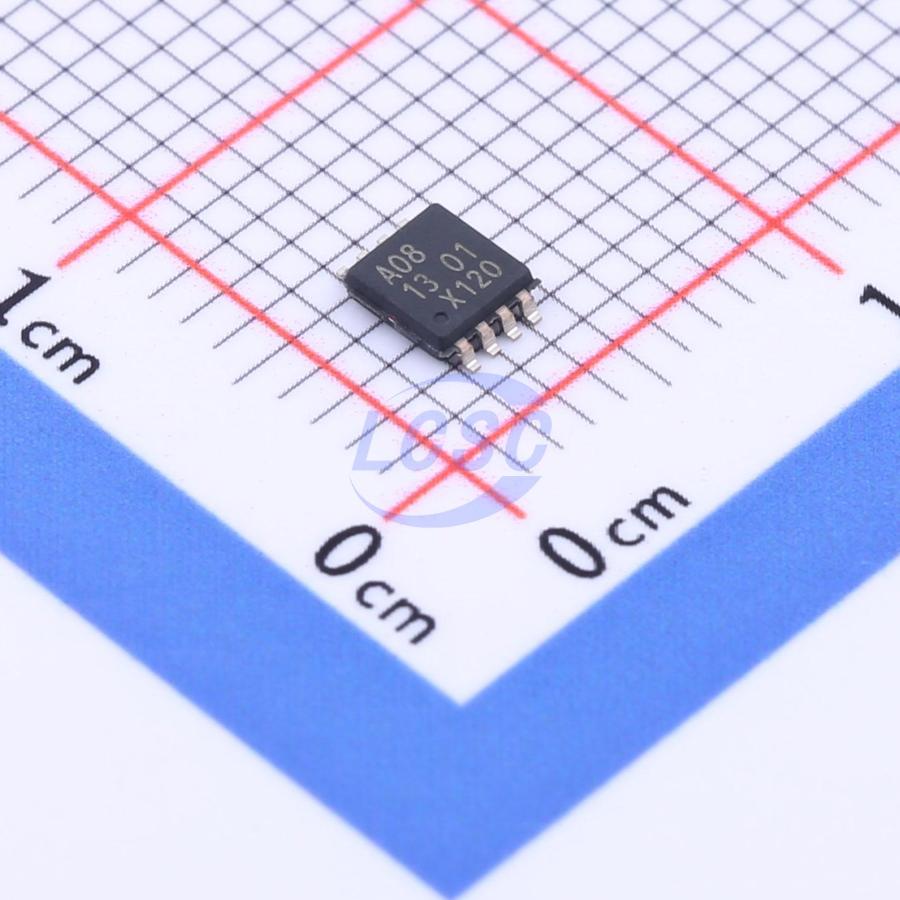

74AHC2G08DP-Q100H
StandardCMOS 2V~5.5V 7.9ns@5V,50pF 40uA TSSOP-8-3.0mm Gates and Inverters RoHS
TSSOP-8-3.0mmROHS3 CompliantActive
Dual 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC2G08DP-Q100H
- Store part #
- C554355
- Package / case
- TSSOP-8-3.0mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C554355
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.83 | ₹55.83 |
| 10+ | ₹43.88 | ₹438.80 |
| 30+ | ₹38.67 | ₹1,160.10 |
| 100+ | ₹32.15 | ₹3,215.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.58 | ₹27,580.00 |
1 × ₹55.83
₹55.83
excl. GST
₹65.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC2G08DP-Q100H
₹55.83 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 2;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The 74AHC2G08-Q100; 74AHCT2G08-Q100 is a dual 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
- Symmetrical output impedance
- Balanced propagation delays
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- Input levels: For 74AHC2G08-Q100: CMOS level For 74AHCT2G08-Q100: TTL level
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
