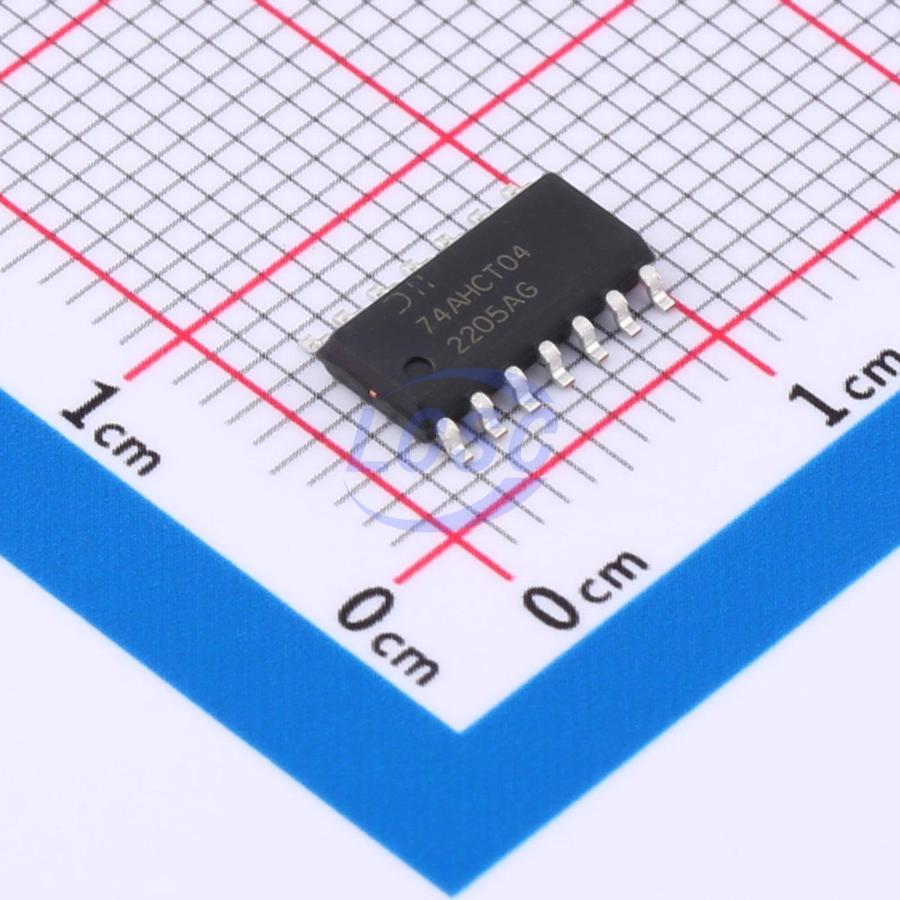

DIODES

74AHCT04S14-13

4.5V~5.5V 7.7ns@5V,50pF 20uA 6 SO-14 Gates and Inverters RoHS

SO-14ROHS3 CompliantActive

HEX INVERTERS

Manufacturer: DIODES
Manufacturer part #: 74AHCT04S14-13
Store part #: C842297
Package / case: SO-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,400 in stock

#C842297

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.71	₹108.55
50+	₹17.25	₹862.50
150+	₹15.35	₹2,302.50
500+	₹12.97	₹6,485.00
2,500+	₹11.91	₹29,775.00
5,000+	₹11.27	₹56,350.00

Quantity (min 5, multiples of 5)

5 × ₹21.71

₹108.55

excl. GST

₹128.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74AHCT04S14-13

₹108.55 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74AHCT
Voltage - Supply: 4.5V~5.5V
Output Logic Level - Low: 440mV
Propagation Delay: 7.7ns@5V,50pF
Features: Noise suppression function
Input Logic Level - High: 2V
Input Logic Level - Low: 800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 8mA
Number of Channels: 6
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.236 g

Overview

The 74AHCT04 provides provides six independent inverters with standard push-pull outputs. The device is designed for operation with a power supply range of 4.5V to 5.5V. The gates perform the Boolean function: Y = A(overline)

Applications

General Purpose Logic
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box

Key features

Wide Supply Voltage Range from 4.5V to 5.5V
Inputs Are TTL Voltage Level Compatible
Outputs Sink or Source 8mA at VCC = 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II
Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
