74AUP1G11GW,125
Schmitt trigger 800mV~3.6V 6.1ns@3.3V,30pF 500nA SOT-363 Gates and Inverters RoHS
SOT-363ROHS3 CompliantActive
Low-power 3-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AUP1G11GW,125
- Store part #
- C554956
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C554956
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.56 | ₹77.80 |
| 50+ | ₹12.22 | ₹611.00 |
| 150+ | ₹10.56 | ₹1,584.00 |
| 500+ | ₹9.30 | ₹4,650.00 |
| 3,000+ | ₹8.30 | ₹24,900.00 |
| 6,000+ | ₹7.79 | ₹46,740.00 |
5 × ₹15.56
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

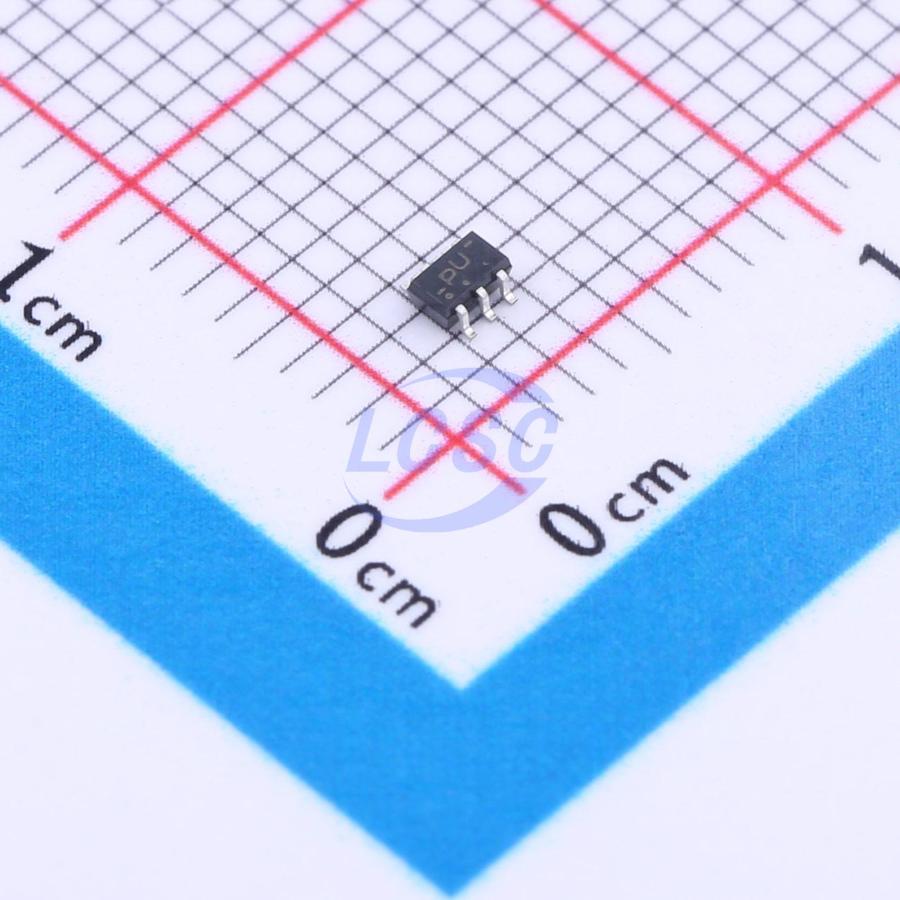

74AUP1G11GW,125
₹77.80 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP Series
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 440mV;450mV
- Propagation Delay
- 6.1ns@3.3V,30pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV~900mV
- Input Logic Level - High
- 1.6V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;3
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The 74AUP1G11 is a single 3-input AND gate. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 0.8 V to 3.6 V
- Low static power consumption; I₍CC₎ = 0.9 μA (maximum)
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Overvoltage tolerant inputs to 3.6 V
- Low noise overshoot and undershoot < 10 % of V₍CC₎
- IOFF circuitry provides partial Power-down mode operation
- Complies with JEDEC standards: JESD8-12 (0.8 V to 1.3 V), JESD8-11 (0.9 V to 1.65 V), JESD8-7 (1.2 V to 1.95 V), JESD8-5 (1.8 V to 2.7 V), JESD8-B (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
