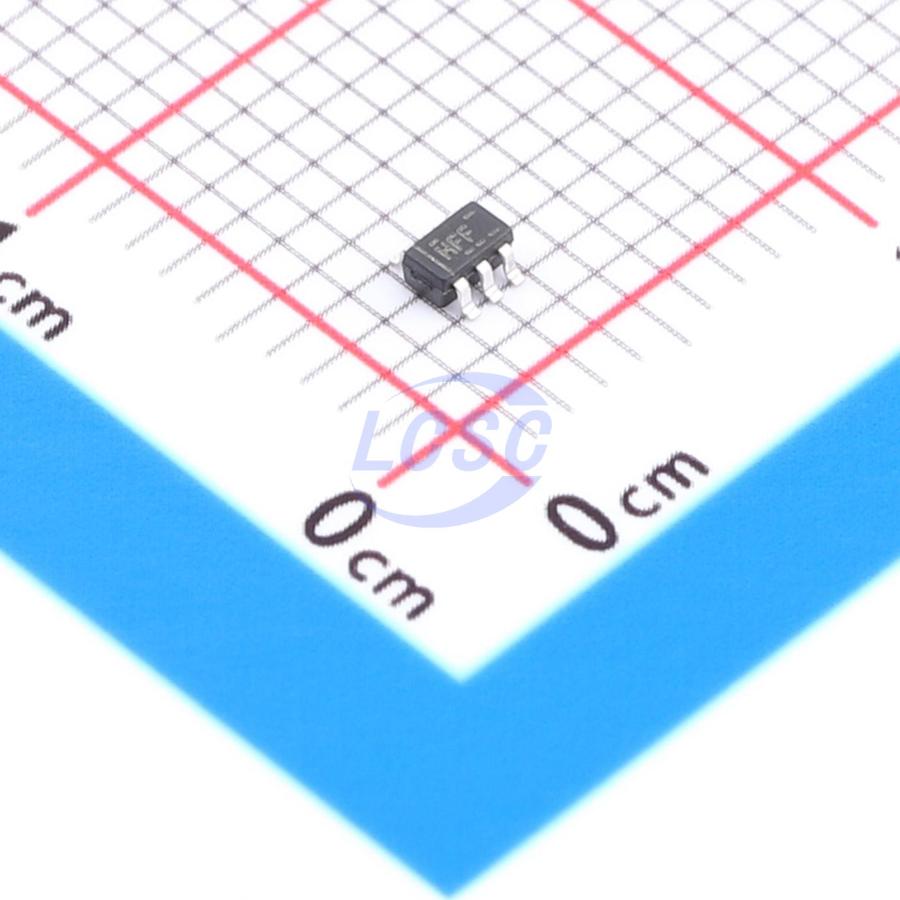

74AUP1G14GW-TP
Schmitt trigger 800mV~3.6V 3.5ns@3.3V,30pF 500nA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G14GW-TP
- Store part #
- C51939523
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C51939523
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.52 | ₹55.20 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.52
₹55.20
excl. GST
₹65.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G14GW-TP
₹55.20 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 3.5ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
This device functions as a standalone gate with Schmitt-trigger inputs, allowing slow input transitions while providing improved switching noise immunity at the inputs. The device ensures ultralow static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- AV receivers
- Audio docking stations
- Portable devices
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Power supplies
- Telecom/server AC/DC power supplies
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode operation
- Low quiescent power consumption; maximum ICC of 0.5μA
- ESD protection exceeds JESD 22: HBM 2000V, MM 200V, CDM 1000V
