TECH PUBLIC

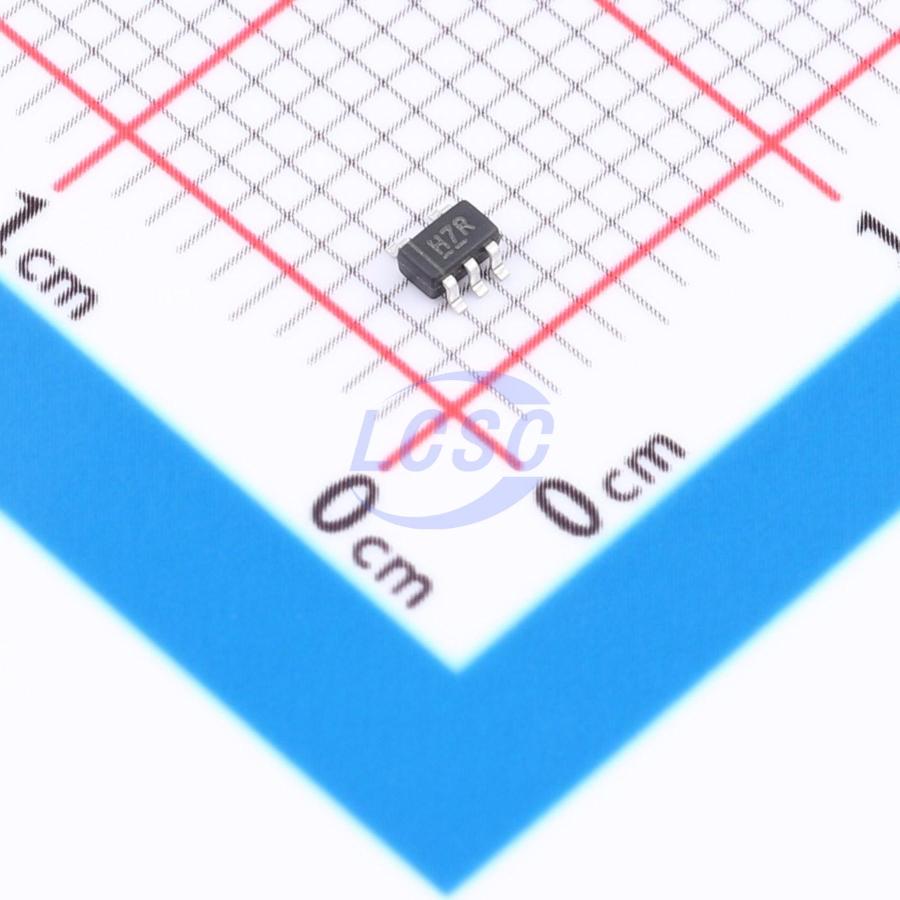

74AUP1G17GW-TP

800mV~3.6V 1 1 2.7ns@3.3V,5pF SOT-353 Flip Flops

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74AUP1G17GW-TP
Store part #: C51886111
Package / case: SOT-353
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,940 in stock

#C51886111

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.07	₹50.70
100+	₹4.00	₹400.00
300+	₹3.45	₹1,035.00
3,000+	₹3.04	₹9,120.00
6,000+	₹2.71	₹16,260.00
9,000+	₹2.55	₹22,950.00

Quantity (min 10, multiples of 10)

10 × ₹5.07

₹50.70

excl. GST

₹59.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1G17GW-TP

₹50.70 for 10 + GST

Specifications

Voltage - Supply: 800mV~3.6V
Number of Bits per Element: 1
Output Type: Open-drain
Operating Temperature: -40℃~+125℃
Series: 74AUP Series
Number of Elements: 1
Quiescent Current: 500nA
Propagation Delay: 2.7ns@3.3V,5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

74AUP1G17GW-TP provides a single non-inverting buffer with open-drain output. The device features an open-drain output structure that can be connected with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.

Applications

AV receivers
Audio docking stations
Blu-ray players and home theater systems
Embedded PCs
Personal digital assistants
Solid-state drives

Key features

Wide supply voltage range: 0.8V to 3.6V
Inputs tolerant up to 3.6V
I<sub>OFF</sub> supports partial power-down mode
Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
