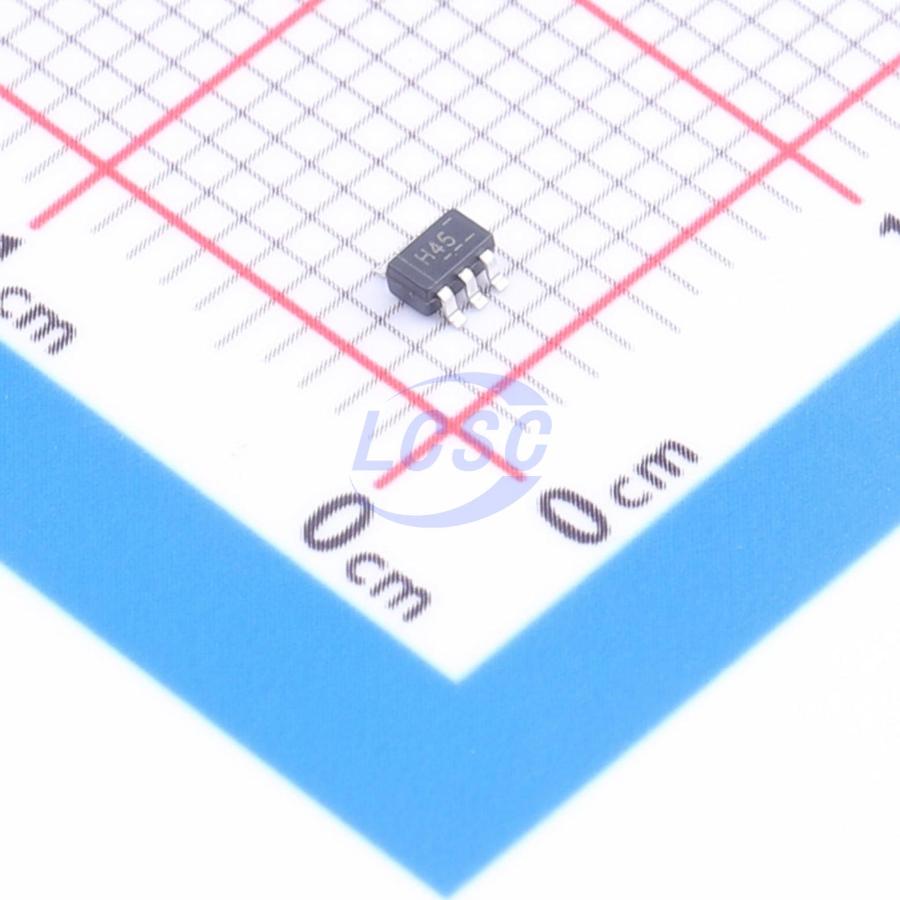

74AUP2G04GW-TP
800mV~3.6V 3.2ns@3.3V,30pF 500nA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP2G04GW-TP
- Store part #
- C50314218
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C50314218
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP2G04GW-TP
₹98.70 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 3.2ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74AUP2G04GW-TP is a dual inverter gate with the function Y = Ā. The device features a power-down protection circuit to prevent damage when the supply is switched off.
Applications
- Audio Dock
- Blu-ray Player and Home Theater
- Personal Digital Assistant
- Solid State Drive
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Input voltage tolerance up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; ICC = 0.5μA (max)
- ESD protection exceeds JESD 22: HBM 2000V (A114-A); MM 200V (A115-A); CDM 1000V (C101)
