NexperiaDatasheet (PDF)

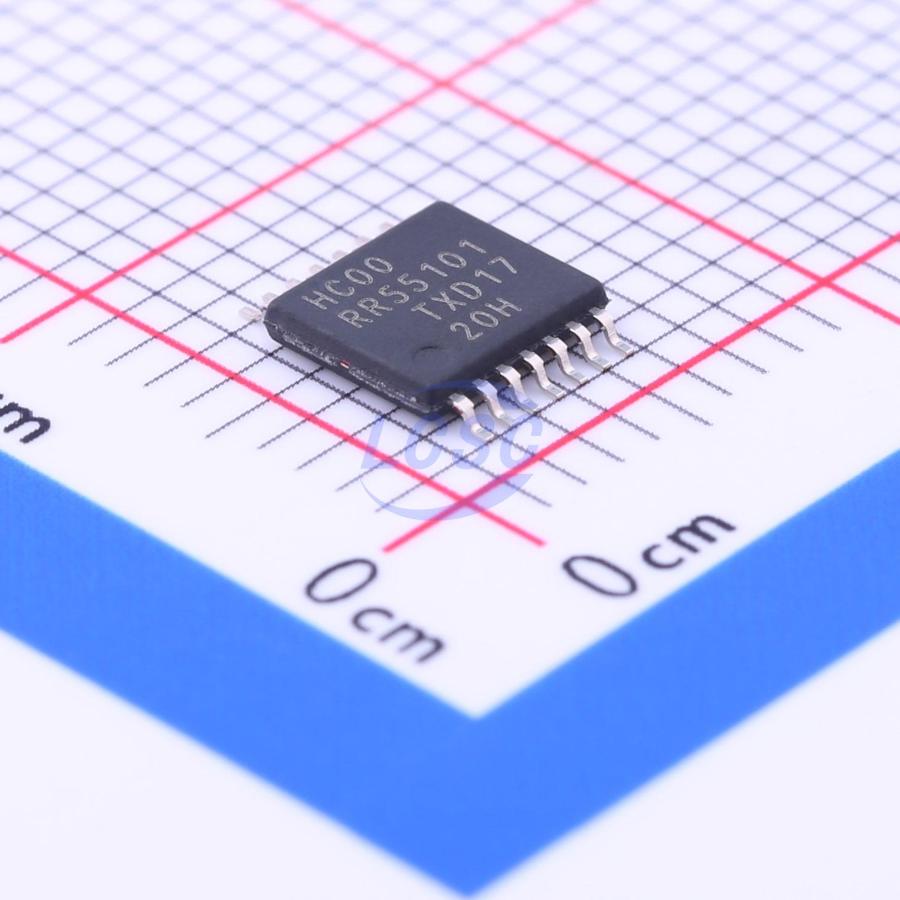

74HC00PW,118
StandardCMOS 2V~6V 7ns@6V,50pF 40uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input NAND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC00PW,118
- Store part #
- C5587
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C5587
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.97 | ₹239.85 |
| 50+ | ₹37.37 | ₹1,868.50 |
| 150+ | ₹32.84 | ₹4,926.00 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 2,500+ | ₹24.65 | ₹61,625.00 |
| 5,000+ | ₹23.13 | ₹1,15,650.00 |
5 × ₹47.97
₹239.85
excl. GST
₹283.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC00PW,118
₹239.85 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 160mV
- Propagation Delay
- 7ns@6V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 3.2V
- Input Logic Level - Low
- 2.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.81V;6V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74HC00; 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC00: CMOS level
- For 74HCT00: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIP74HC00TA14.TR#C4945086Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 20 | ₹23.46 · 20 in stock | View |
 | EM74HC00PW#C49188259EnergyMath · TSSOP-14L | EnergyMath | TSSOP-14L | 80 | ₹23.02 · 80 in stock | View |
 | SN74HC00QPWRQ1#C2682061TI · TSSOP-14 | TI | TSSOP-14 | 98 | ₹94.83 · 98 in stock | View |
 | MC74HC00ADTR2G#C233527onsemi · TSSOP-14 | onsemi | TSSOP-14 | 500 | ₹43.24 · 500 in stock | View |
 | SN74HC132QPWRG4Q1#C2869078TI · TSSOP-14 | TI | TSSOP-14 | 240 | ₹66.08 · 240 in stock | View |
