HANSCHIP semiconductor

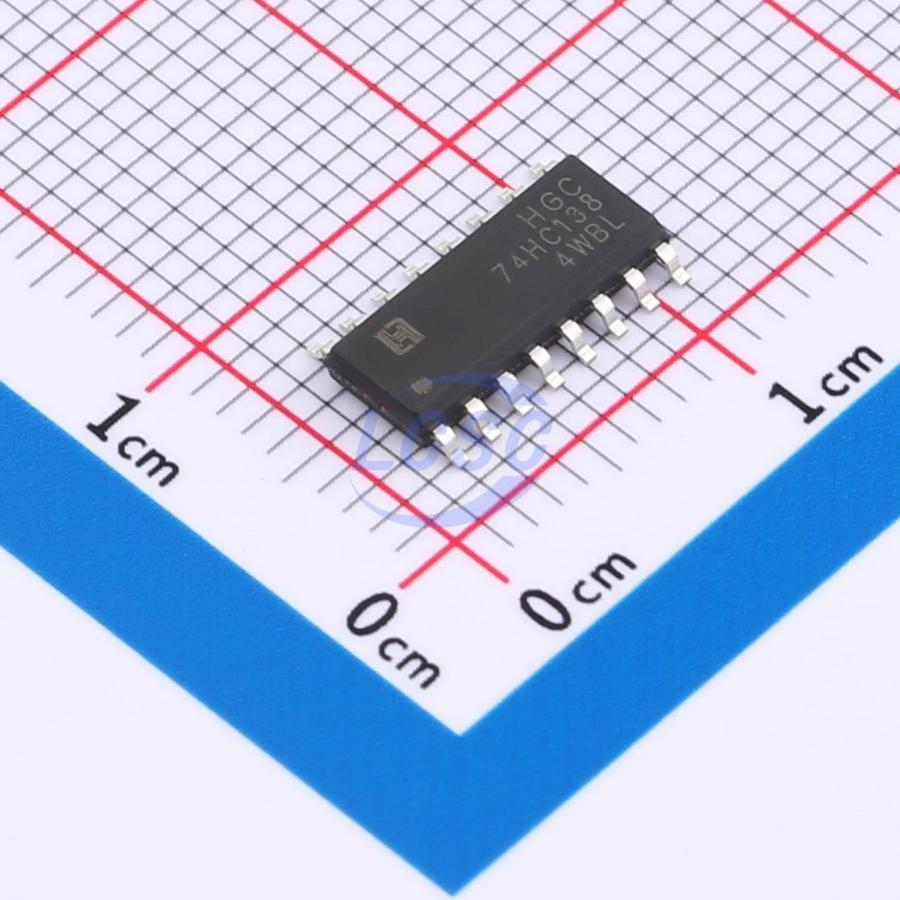

74HC138DRG

3/8 2V~6V 5uA 25ns@5.0V,16pF Reverse function SOP-16 Signal Switches, Multiplexers, Decoders RoHS

SOP-16ROHS CompliantActive

74HC138 Low-power High-speed CMOS 8-bit Decoder with Inverting Output

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: 74HC138DRG
Store part #: C22439339
Package / case: SOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,010 in stock

#C22439339

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.24	₹66.20
50+	₹10.64	₹532.00
150+	₹9.34	₹1,401.00
500+	₹8.36	₹4,180.00
2,500+	₹7.58	₹18,950.00
5,000+	₹7.18	₹35,900.00

Quantity (min 5, multiples of 5)

5 × ₹13.24

₹66.20

excl. GST

₹78.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC138DRG

₹66.20 for 5 + GST

Specifications

Type: Decoder
Series: 74HC
Number of Channels: 3/8
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+85℃
Quiescent Current: 5uA
Propagation Delay: 25ns@5.0V,16pF
Function: Reverse function

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.346 g

Overview

The 74HC138 is a high-speed CMOS 3-to-8 line decoder with inverted outputs. It accepts 3-bit binary-weighted address inputs (A, B, C) to drive 8 active-low outputs; featuring one active-high enable input (G1) and two active-low enable inputs (G2A̅, G2B̅), enabling cascaded multi-level parallel output expansion. By using any one of the active-low enable inputs as a data input while the remaining enable inputs serve as strobe inputs, the 74HC138 can also function as an 8-output demultiplexer.
