NexperiaDatasheet (PDF)

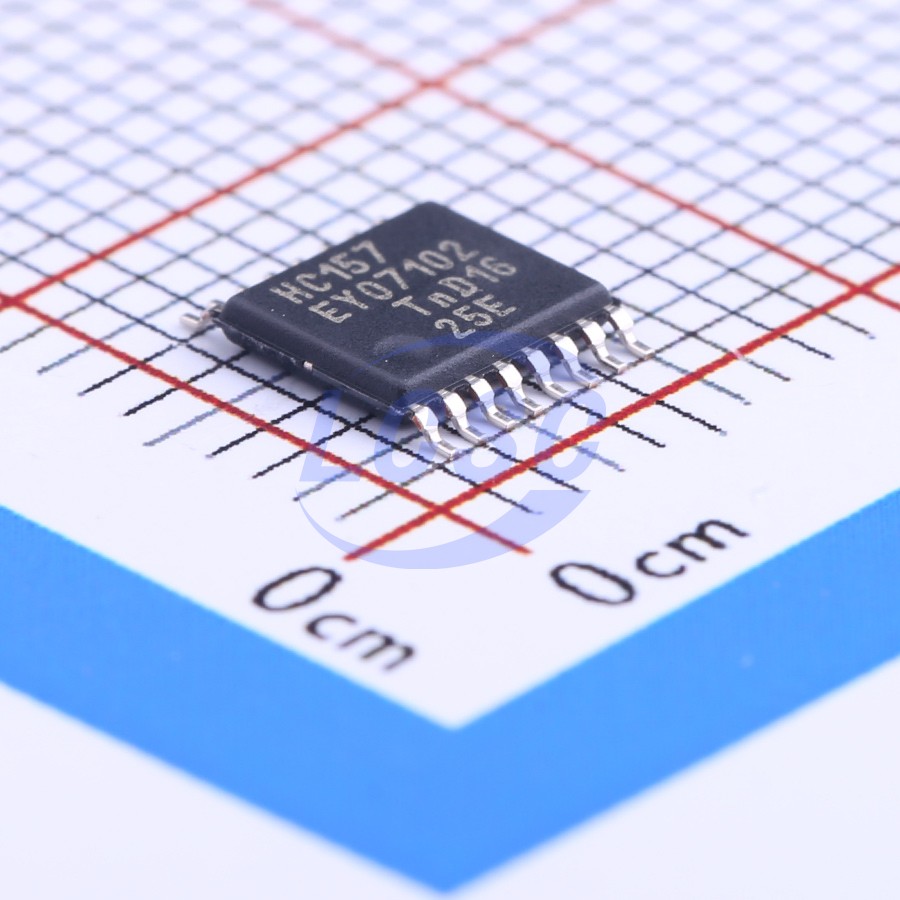

74HC157PW,118
8/4 2V~6V 160uA 10ns@6.0V,50pF TSSOP-16 Signal Switches, Multiplexers, Decoders RoHS
TSSOP-16ROHS3 CompliantActive
Quad 2-input multiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC157PW,118
- Store part #
- C148201
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,285 in stock
#C148201
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.07 | ₹190.35 |
| 50+ | ₹29.73 | ₹1,486.50 |
| 150+ | ₹26.16 | ₹3,924.00 |
| 500+ | ₹21.70 | ₹10,850.00 |
| 2,500+ | ₹19.72 | ₹49,300.00 |
| 5,000+ | ₹18.52 | ₹92,600.00 |
5 × ₹38.07
₹190.35
excl. GST
₹224.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC157PW,118
₹190.35 for 5 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/4
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 160uA
- Current - Output High(IOH)
- 5.2mA
- Propagation Delay
- 10ns@6.0V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
The 74HC157; 74HCT157 is a quad 2-input multiplexer. The device features select (S) and enable E inputs. A HIGH on S selects data source 1, a LOW data source 0. A HIGH on E forces all the outputs (1Y to 4Y) LOW. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Data selection
- Signal routing
- Digital logic circuits
- Communication systems
- Computer peripherals
- Industrial control
- Test and measurement equipment
- Consumer electronics
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC157: CMOS level
- For 74HCT157: TTL level
- Non-inverting data path
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
